       MICRO USB SOCKET Micro/Mini USB


























        防水Micro 5p-05-003













       IP67 Micro5P BF SMT


      防水Micro 5p-05-003

      防水Micro 5P BF板上貼片式SMT全塑有柱5.6L

FEATURE
?6.90 mm*3.25mm
? Pin No.: 5 pin
? Top Mount
? Waterproof IPX7

APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment










      產(chǎn)品說明


      COMMON SPECIFICATIONS

      CharacteristicsSpecification
      額定電流/Current Rating5.0A MAX
      額定電壓/Voltage Rating100VAC
      接觸電阻/Contact Resistance40 millionhm max
      尺寸/Dimension
      6.90 mm*3.25mm
      溫度/temperature range-30℃~85℃
      絕緣電阻/Insulation Resistance100 megohms min

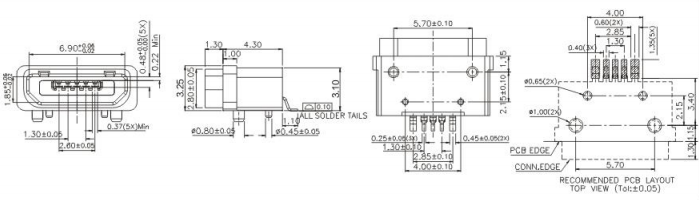

      DIMENSIONS
      Unit:mm
      ModelDimensions
      防水Micro 5p-05-003防水Micro 5p-05-003防水Micro 5p-05-003
