       MICRO USB SOCKET Micro/Mini USB

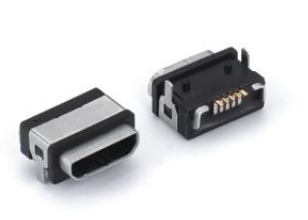

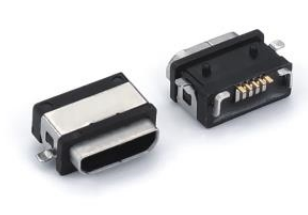

        防水Micro 5p-05-008/009













       IP67 Micro5P BF SMT


      防水Micro 5p-05-008/009

      防水Micro 5P BF板上四腳全貼/前插后貼SMT 6.25L

FEATURE
?11.10mm*5.00mm
? Pin No.: 5 pin
?Top Mount
? Waterproof IPX7

APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment










      產(chǎn)品說明


      COMMON SPECIFICATIONS

      CharacteristicsSpecification
      額定電流/Current Rating5.0A MAX
      額定電壓/Voltage Rating100VAC
      接觸電阻/Contact Resistance40 millionhm max
      尺寸/Dimension
      11.10mm*5.00mm
      溫度/temperature range-30℃~85℃
      絕緣電阻/Insulation Resistance100 megohms min

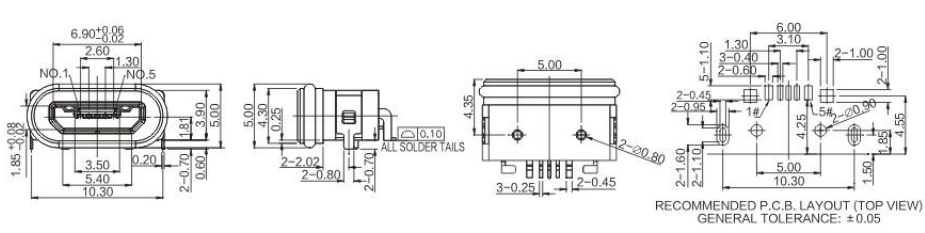

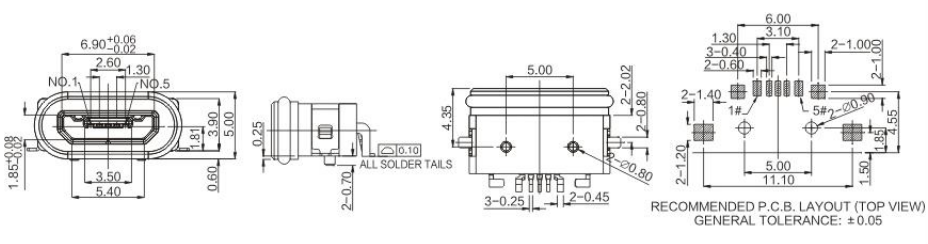

      DIMENSIONS
      Unit:mm
      ModelDimensions
      防水Micro 5p-05-008
      防水Micro 5p-05-008/009
      		防水Micro 5p-05-008/009

      ModelDimensions
      防水Micro 5p-05-009防水Micro 5p-05-008/009防水Micro 5p-05-008/009
