USB 3.1Waterproof TYPE-C Connector

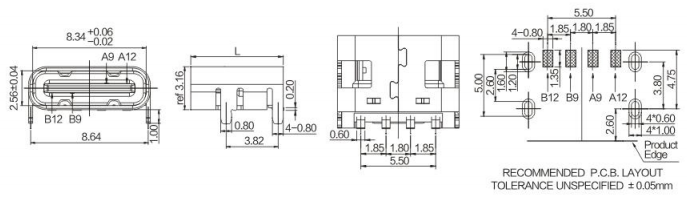

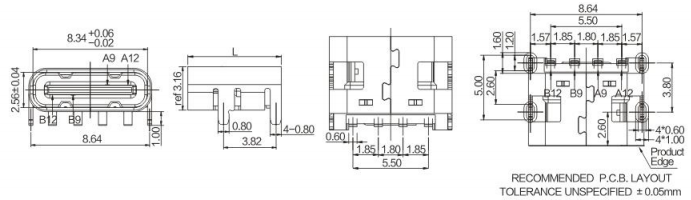

TYPE-C-04-001/002
TYPE-CF4P板上DIP/SMT 5.0/5.5/6.5/6.8L
FEATURE
?8.64mm*3.80mm
? Pin No.: 4 pin
? Top Mount
APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment
