       MICRO USB SOCKET Micro/Mini USB


























        Micro USB  BMOF-05-001













       MICRO USB


      Micro USB  BMOF-05-001

      Micro 7P BF插板5.65mm兩腳DIP 直邊卷邊

FEATURE
?6.90mm*1.85mm
? Pin No.: 7 pin
? Power strip

APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment










      產(chǎn)品說明


      COMMON SPECIFICATIONS

      CharacteristicsSpecification
      額定電流/Current Rating5.0A MAX
      額定電壓/Voltage Rating100VAC
      接觸電阻/Contact Resistance40 millionhm max
      尺寸/Dimension
      6.90mm*1.85mm
      溫度/temperature range-30℃~85℃
      絕緣電阻/Insulation Resistance100 megohms min

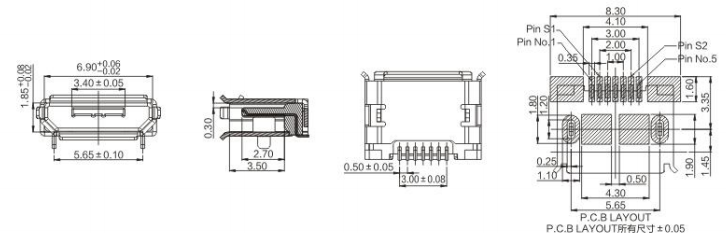

      DIMENSIONS
      Unit:mm
      ModelDimensions
      Micro USB BMOF-05-001
      Micro USB  BMOF-05-001      		Micro USB  BMOF-05-001
