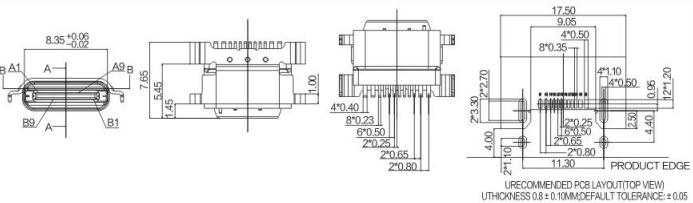

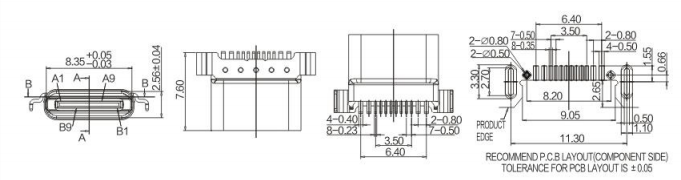

USB 3.1Waterproof TYPE-C Connector
TYPE-C-12-003/004
TYPE-C防水母座12P沉板帶勾兩腳/四腳外露/不外露
FEATURE
?11.30mm*7.60mm
? Pin No.: 12 pin
? Mid Mount
? Waterproof IPX7
APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment
