       MICRO USB SOCKET Micro/Mini USB


























         Micro USB BMOF-05-007/008













       Micro USB


       Micro USB BMOF-05-007/008

      Micro5P BF墊高1.55mm/2.2mm四腳DIP雙殼直邊卷邊

FEATURE
?7.65mm*6.60mm
? Pin No.: 5 pin
?  Power strip

APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment










      產(chǎn)品說明


      COMMON SPECIFICATIONS

      CharacteristicsSpecification
      額定電流/Current Rating5.0A MAX
      額定電壓/Voltage Rating100VAC
      接觸電阻/Contact Resistance40 millionhm max
      尺寸/Dimension
      7.65mm*6.60mm
      溫度/temperature range-30℃~85℃
      絕緣電阻/Insulation Resistance100 megohms min

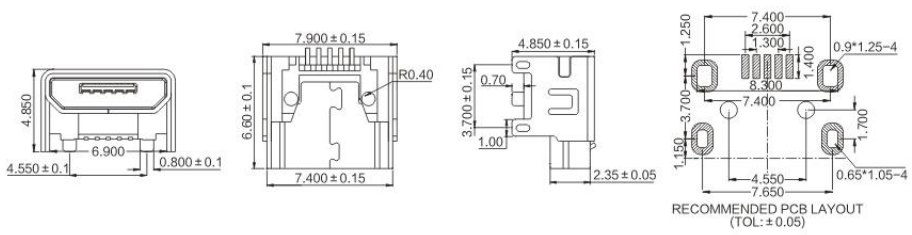

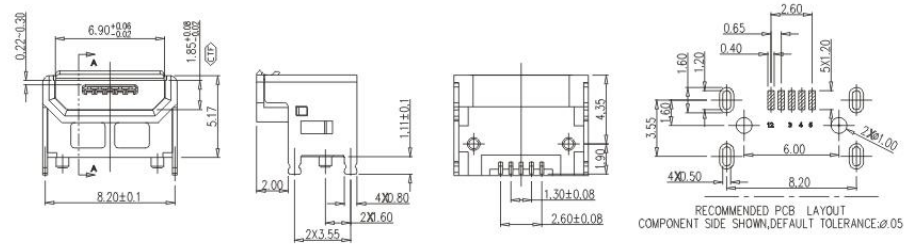

      DIMENSIONS
      Unit:mm
      ModelDimensions
       Micro USB BMOF-05-007
       Micro USB BMOF-05-007/008
      		 Micro USB BMOF-05-007/008

      ModelDimensions
      Micro USB BMOF-05-008 Micro USB BMOF-05-007/008 Micro USB BMOF-05-007/008
