MICRO USB SOCKET Micro/Mini USB
MICRO USB

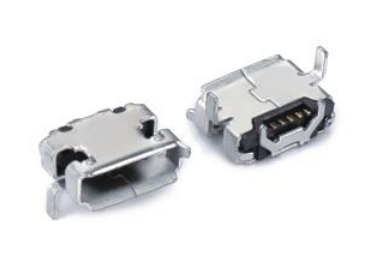

Micro USB BMOF-05-013
Micro 5P AB-F牛角8.35*4.45mm四腳正向反向直邊卷邊
FEATURE
?8.35mm*4.45mm
? Pin No.: 5 pin
? Power strip
APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電流/Current Rating | 5.0A MAX |
|---|
| 額定電壓/Voltage Rating | 100VAC |
|---|
| 接觸電阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 8.35mm*4.45mm |
|---|
| 溫度/temperature range | -30℃~85℃ |
|---|
| 絕緣電阻/Insulation Resistance | 100 megohms min |
|---|

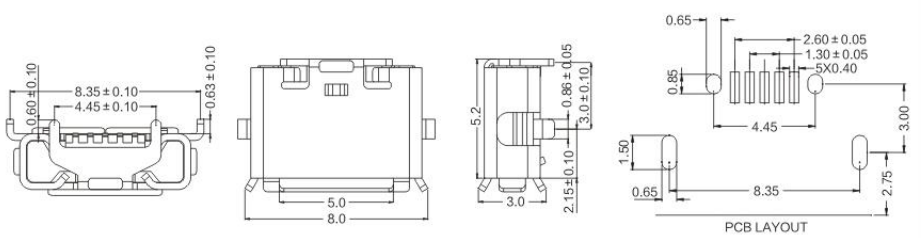

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
Micro USB BMOF-05-01 3
 |  |
