MICRO USB SOCKET Micro/Mini USB
Micro USB

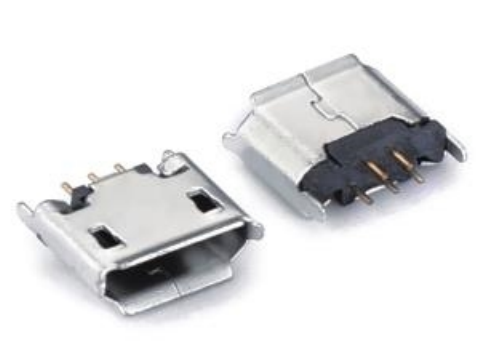

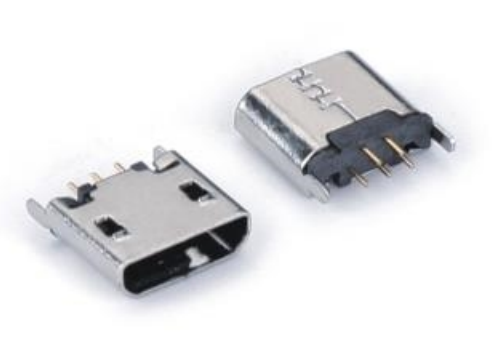

Micro USB BMOF-05-014/015
Micro5P BF180度直插5.6H/6.0H直邊卷邊
FEATURE
?8.0mm*7.6mm
? Pin No.: 5 pin
? Power strip
APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電流/Current Rating | 5.0A MAX |
|---|
| 額定電壓/Voltage Rating | 100VAC |
|---|
| 接觸電阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 8.0mm*7.6mm |
|---|
| 溫度/temperature range | -30℃~85℃ |
|---|
| 絕緣電阻/Insulation Resistance | 100 megohms min |
|---|
DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|

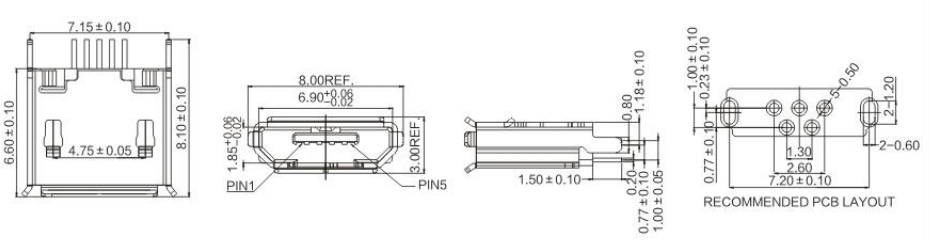

| Micro USB BMOF-05-014
|  |
| Model | Dimensions |
|---|

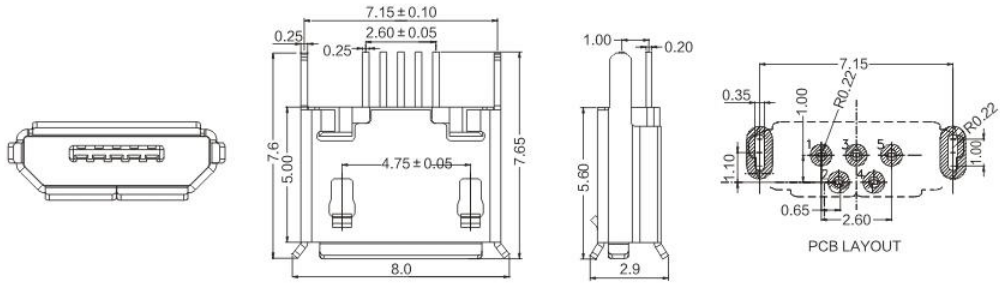

Micro USB BMOF-05-015 |  |
