MICRO USB SOCKET Micro/Mini USB
Micro USB
Micro USB BMOF-10-001/002
Micro 3.0 10P BF插板11.30mm/12.55mm兩腳DIP 卷邊/帶加強腳5.60L
FEATURE
?13.29mm*5.00mm
? Pin No.: 10 pin
? Mid Mount
APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電流/Current Rating | 5.0A MAX |
|---|
| 額定電壓/Voltage Rating | 100VAC |
|---|
| 接觸電阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 13.29mm*5.00mm |
|---|
| 溫度/temperature range | -30℃~85℃ |
|---|
| 絕緣電阻/Insulation Resistance | 100 megohms min |
|---|

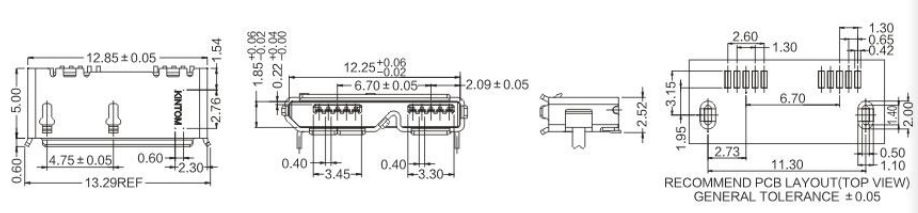

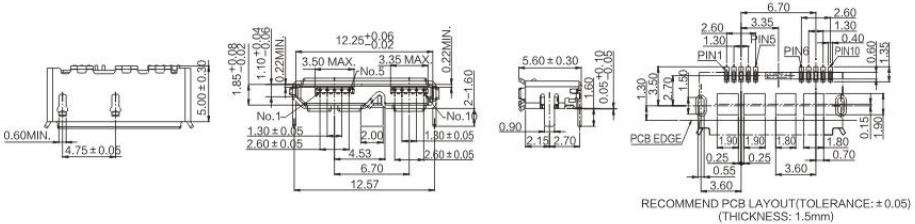

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
| Micro USB BMOF-10-001
|  |
| Model | Dimensions |
|---|
Micro USB BMOF-10-002 |  |
