USB3.1 TYPE-C SOCKET USB 3.0 (Super Speed)
USB 3.0 AF
USB 3.0 AF BUBF-09-004/005
USB3.0AF沉板2.45mm居中方腳/90度14.25L卷邊直邊
FEATURE
?16.00mm*14.25mm
? Pin No.: 10 pin
? Mid Mount
APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電流/Current Rating | 5.0A MAX |
|---|
| 額定電壓/Voltage Rating | 100VAC |
|---|
| 接觸電阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 16.00mm*14.25mm |
|---|
| 溫度/temperature range | -30℃~85℃ |
|---|
| 絕緣電阻/Insulation Resistance | 100 megohms min |
|---|

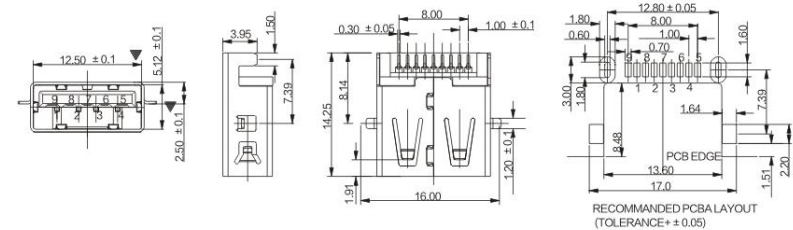

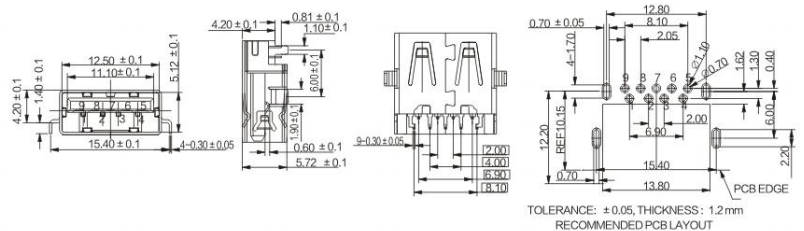

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
| USB 3.0 AF BUBF-09-004
|  |
| Model | Dimensions |
|---|
USB 3.0 AF BUBF-09-005 |  |
