USB3.1 TYPE-C SOCKET USB 3.0 (Super Speed)
USB 3.0 AF

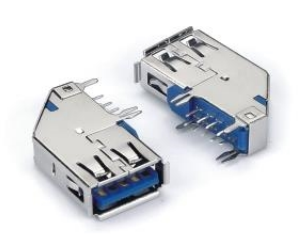

USB 3.0 AF BUBF-09-007
USB3.0AF側(cè)插90度DIP25.7L卷邊直邊
FEATURE
?13.85mm*12.50mm
? Pin No.:5pin
? Upright
APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment
產(chǎn)品說(shuō)明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電流/Current Rating | 5.0A MAX |
|---|
| 額定電壓/Voltage Rating | 100VAC |
|---|
| 接觸電阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 13.85mm*12.50mm |
|---|
| 溫度/temperature range | -30℃~85℃ |
|---|
| 絕緣電阻/Insulation Resistance | 100 megohms min |
|---|

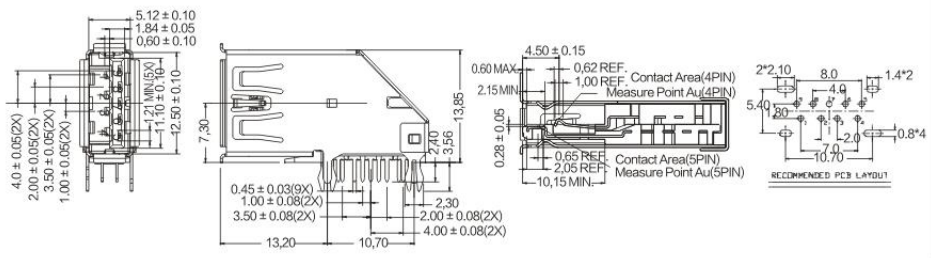

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
USB 3.0 AF BUBF-09-007
 |  |
