TOUCH SWITCH 輕觸開關(guān)

Micro-Miniature Tact Switch

TK-034MU

SMT VERTICAL Type, 正按中龜輕觸開關(guān) FEATURE 4.75mmx3.55mmx2.5mm, surface mounting type.. ?Reflow solderable. APPLICATIONS ? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
操作力/Operating force	180gf 250gf
行程/Travel	0.25mm
尺寸/Dimension	4.75*3.55mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 50mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC

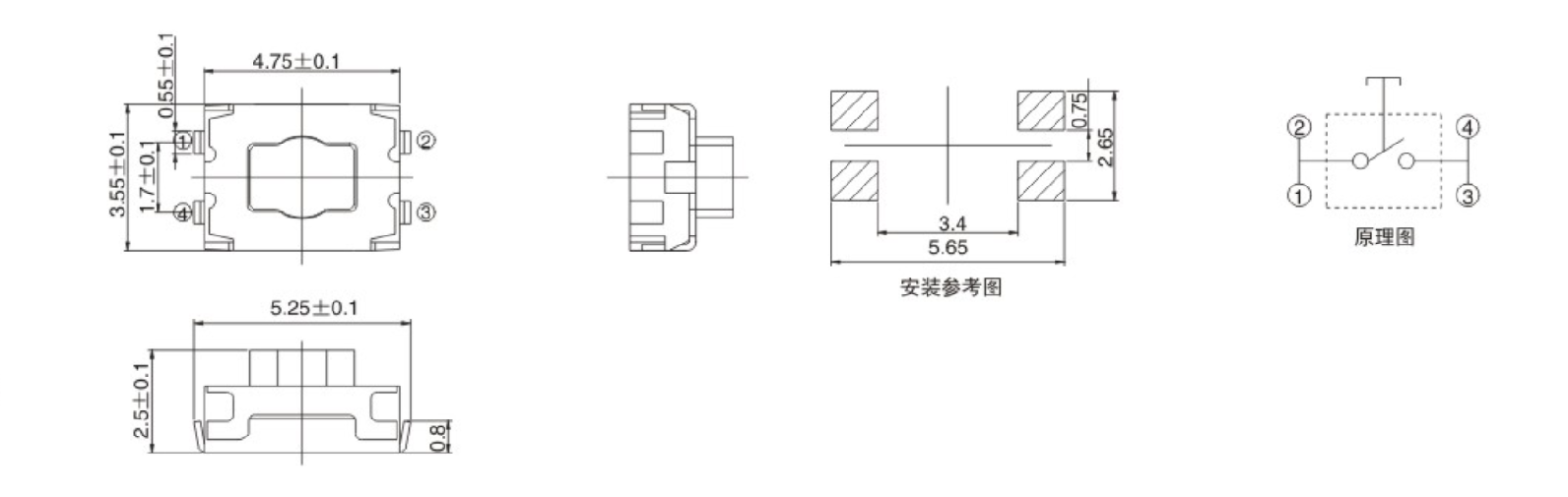

DIMENSIONS

Unit:mm

Model	Dimensions
TK-034MU

Model

Dimensions

TK-034MU
