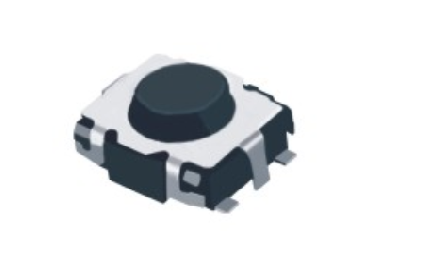

Tact Switch
TK-1327
SMT VERTICAL Type, 輕觸開關(guān)
FEATURE
3.5mm*3.00mm, surface mounting type..
?Reflow solderable.
APPLICATIONS
? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 工作溫度範圍/Operating temperature range | -30℃ to +85℃ |
|---|
| 操作力/Operating force | 100、160、260gf |
|---|
| 行程/Travel | 0.25mm |
|---|
| 尺寸/Dimension | 3.5*3.00mm |
|---|
| 使用壽命/Operating life | 100,000 cycles |
|---|
| 最大額定值/Maximum ratings | DC12V 50mA |
|---|
| 絕緣電阻/Insulation resistance | 100M? min |
|---|
| 耐電壓/Voltage proof | 1 minute 250V AC |
|---|
DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
TK-1327
|  |
