TOUCH SWITCH 輕觸開關(guān)

Tact Switch

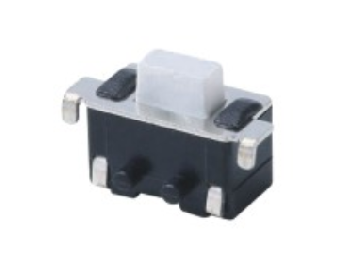

TK-2031

SMT VERTICAL Type, 輕觸開關(guān) FEATURE 6.00mm*3.50mm*5.00mm, surface mounting type.. ?Reflow solderable. APPLICATIONS ? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
操作力/Operating force	100、160、260gf
行程/Travel	0.25mm
尺寸/Dimension	6.00*3.50mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 50mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC

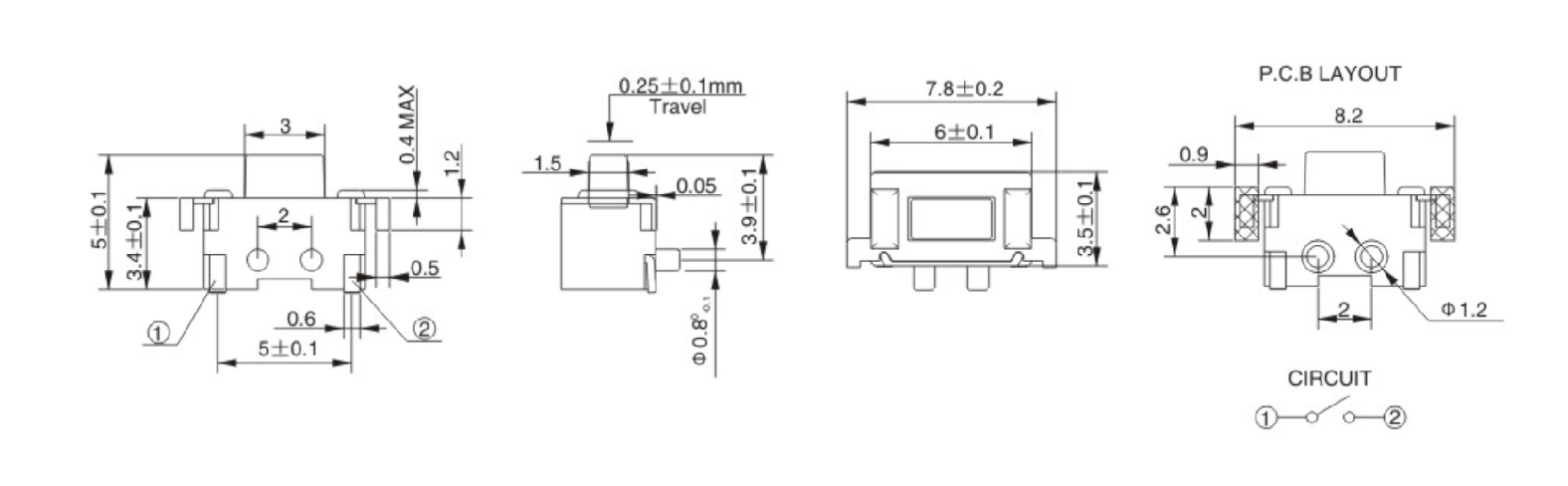

DIMENSIONS

Unit:mm

Model	Dimensions
TK-2031
