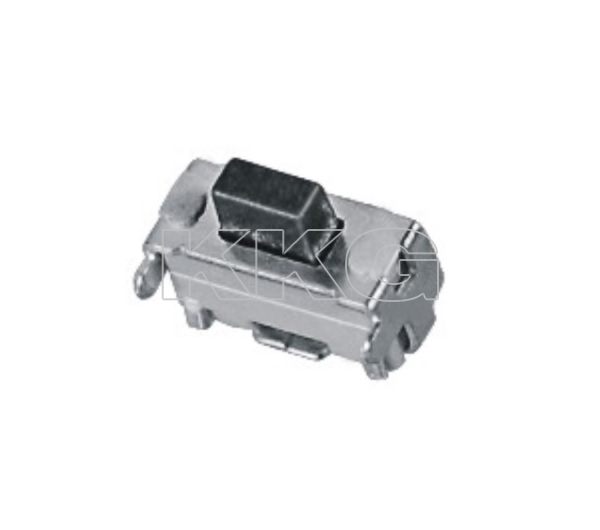

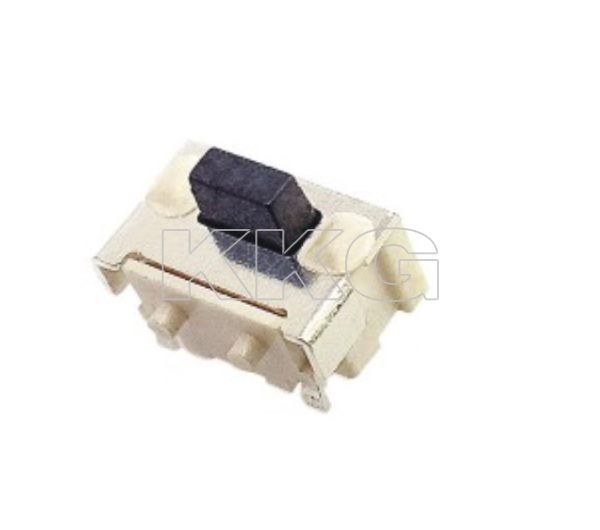

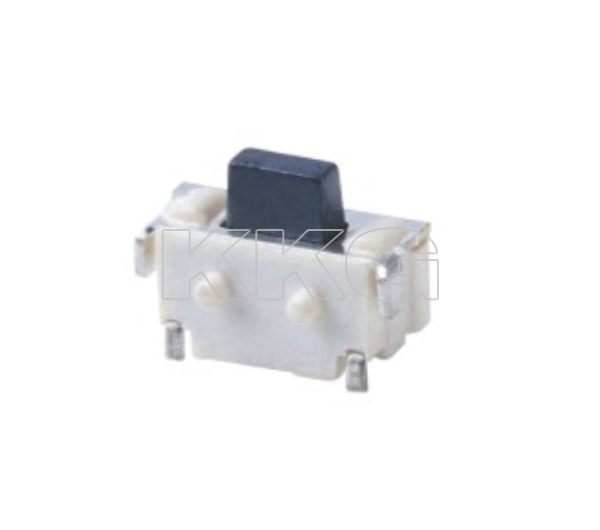

TK-024 series

Right Angle SMT Tact Switch, 輕觸開關(guān) 4.5mm*2.3mm FEATURE ?Silver plated contacts ?Reflow solderable. APPLICATIONS ? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
操作力/Operating force	100gf、160gf、260gf
行程/Travel	0.25mm

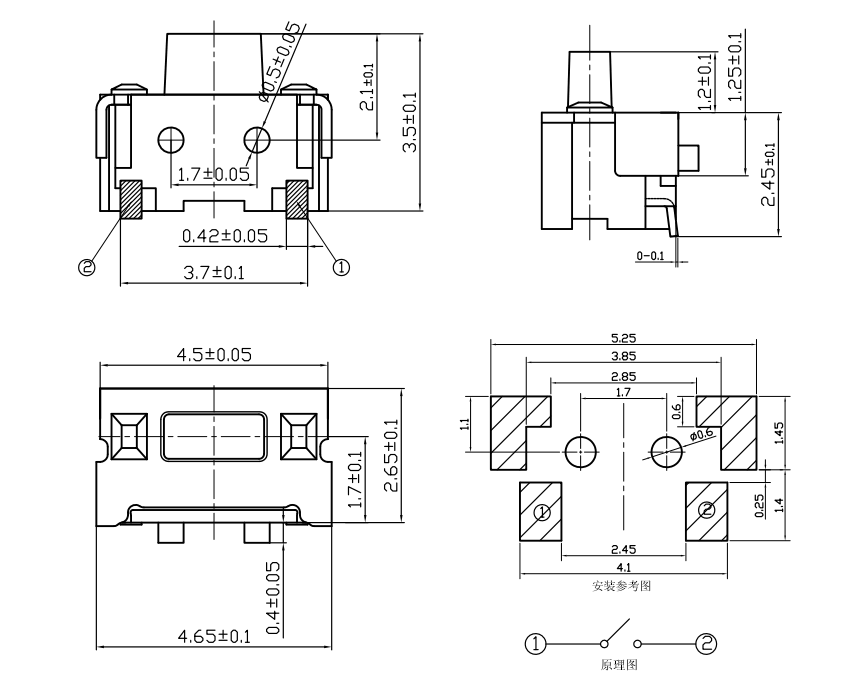

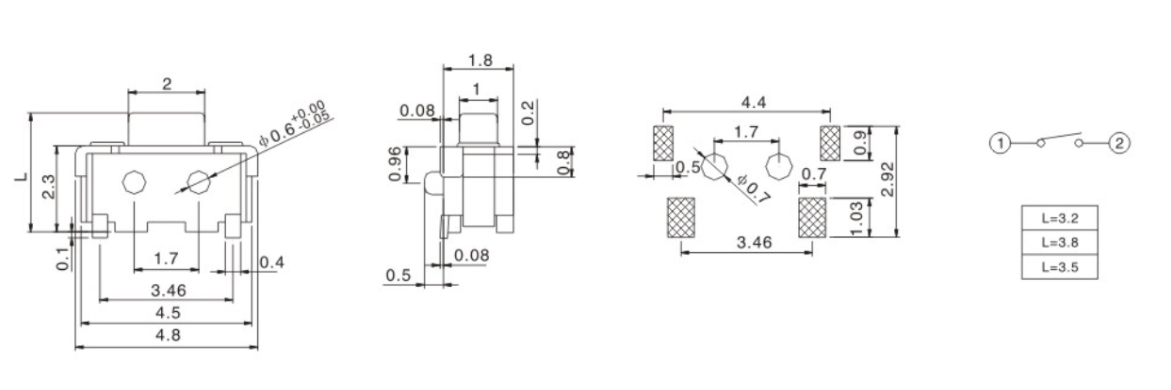

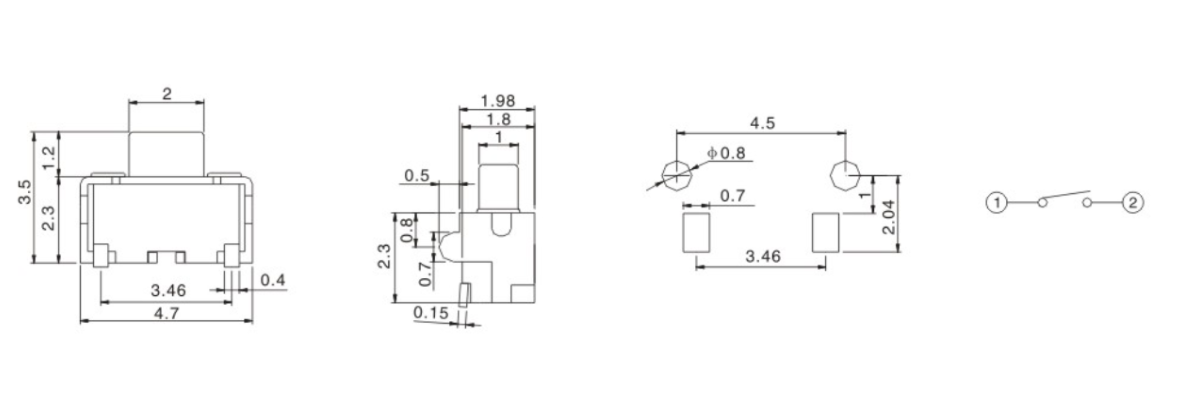

尺寸/Dimension	4.5* 2.3mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 50mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC
