TK-024E

SMT VERTICAL Type, 沈板型輕觸開關 4mm*4.55mm 板上1.1mm FEATURE ?Silver plated contacts ?Reflow solderable. APPLICATIONS ? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
操作力/Operating force	100gf、160gf、260gf
行程/Travel	0.25mm
尺寸/Dimension	4*4.55mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 50mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC

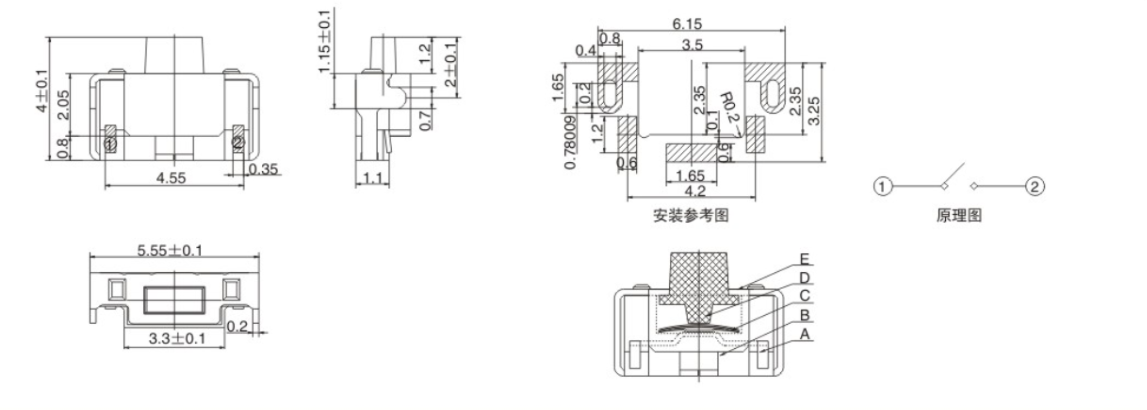

DIMENSIONS

Unit:mm

Model	Dimensions
TK-024E

Model

Dimensions

TK-024E
