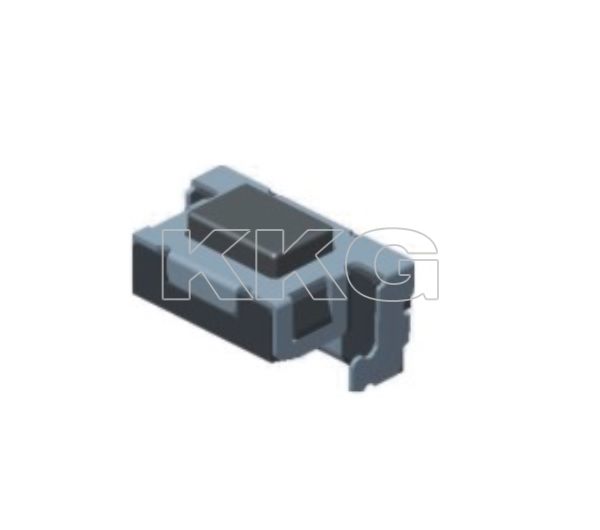

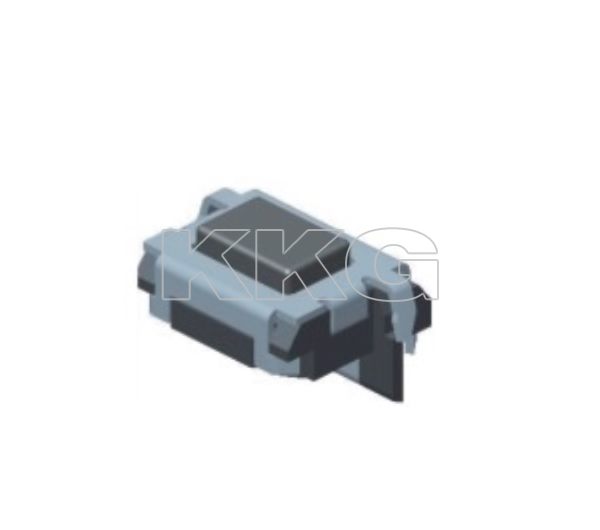

TK-035 series

Right Angle SMT Type, 4.6mm*2.9mm 沈板貼片輕觸開關 FEATURE 4.6mm*2.9mm, surface mounting type.. ?Reflow solderable. APPLICATIONS ? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
操作力/Operating force	160gf、260gf
行程/Travel	0.25±0.1mm

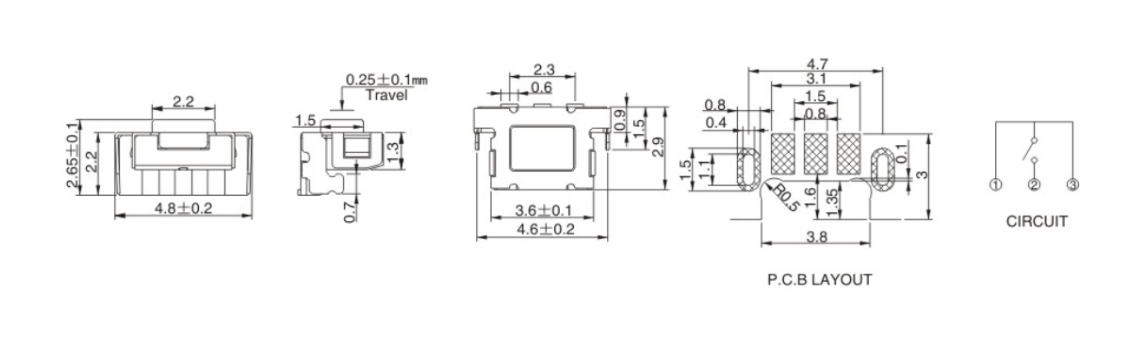

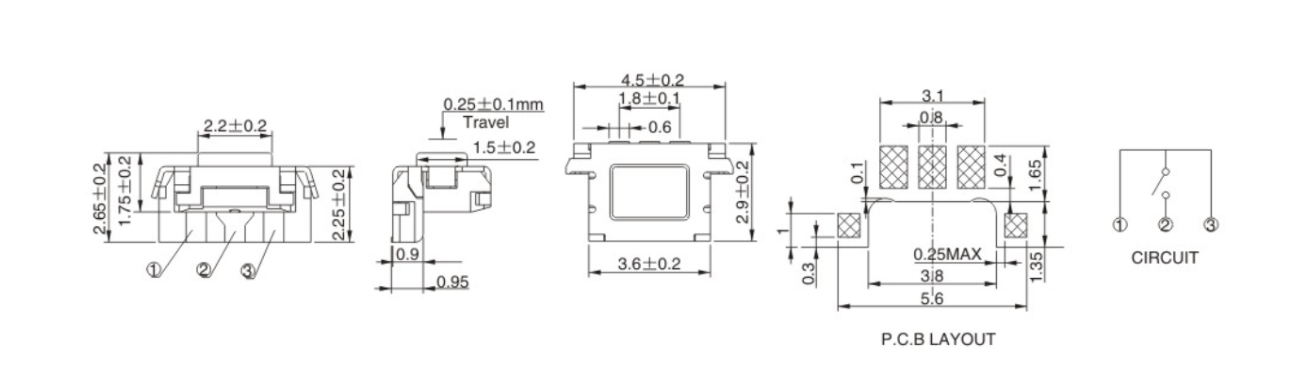

尺寸/Dimension	2.65*4.8mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 50mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC
