TOUCH SWITCH 輕觸開關

Ultraminiature SMT Tact Switch

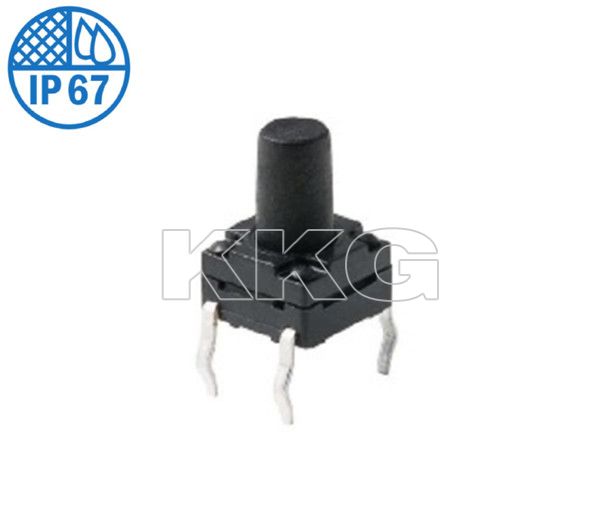

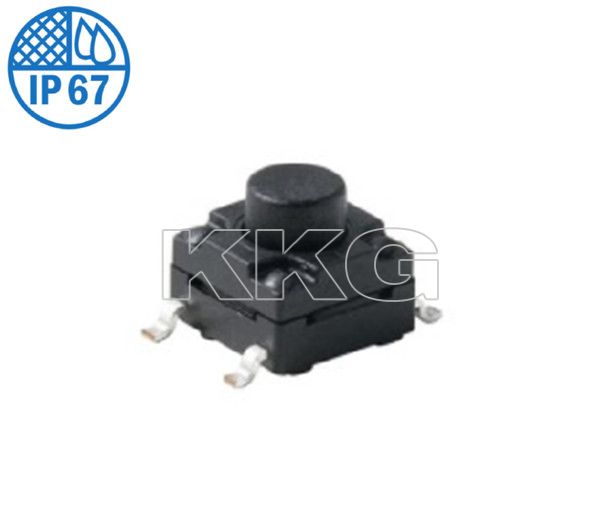

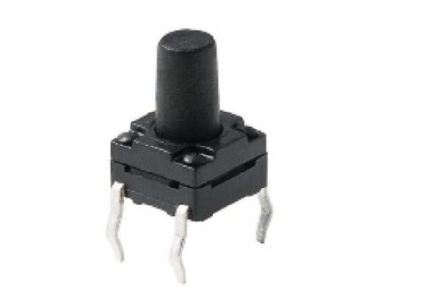

TK-067 Series

SMT VERTICAL Type, 防水輕觸開關 FEATURE 6.20mm*6.20mm, surface mounting type.. ?Reflow solderable. APPLICATIONS ? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-20℃ to +70℃
操作力/Operating force	260gf
行程/Travel	0.25mm
尺寸/Dimension	6.20*6.20mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 0.5A
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC

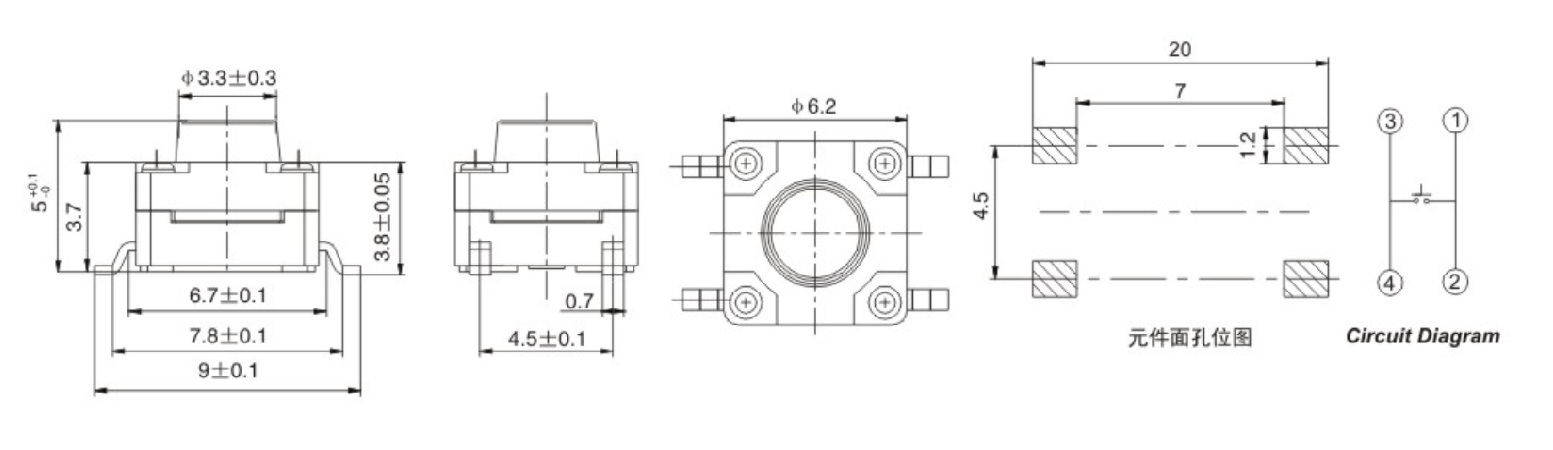

DIMENSIONS

Unit:mm

Model	Dimensions
TK-067

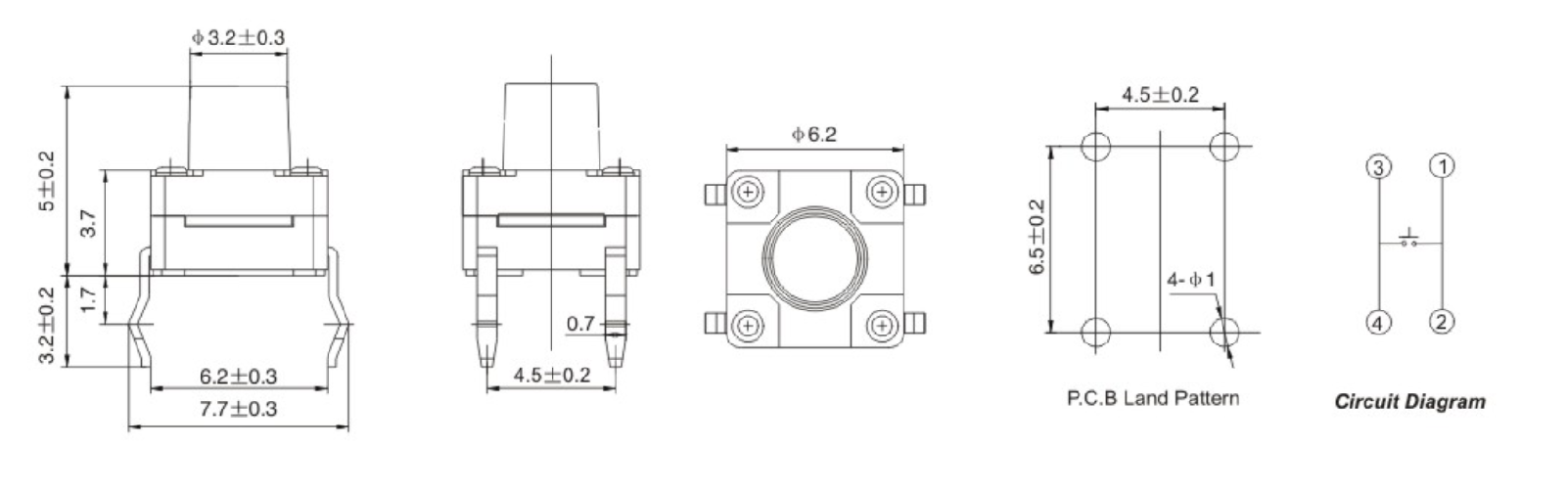

Model	Dimensions
TK-067S
