TOUCH SWITCH 輕觸開關

Ultraminiature SMT Tact Switch

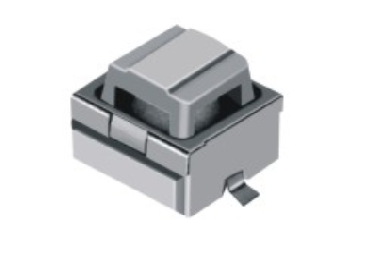

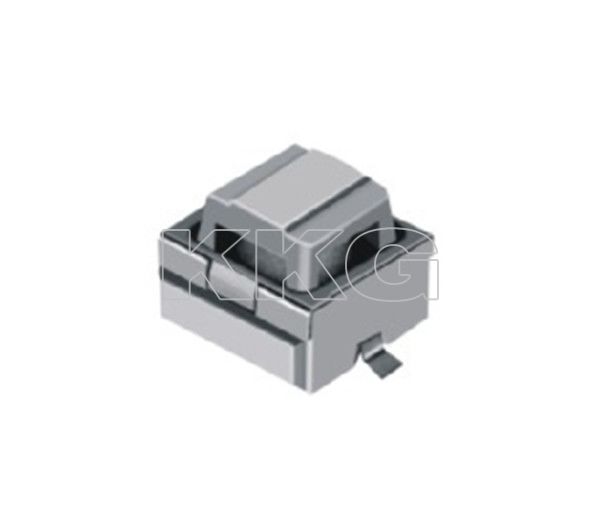

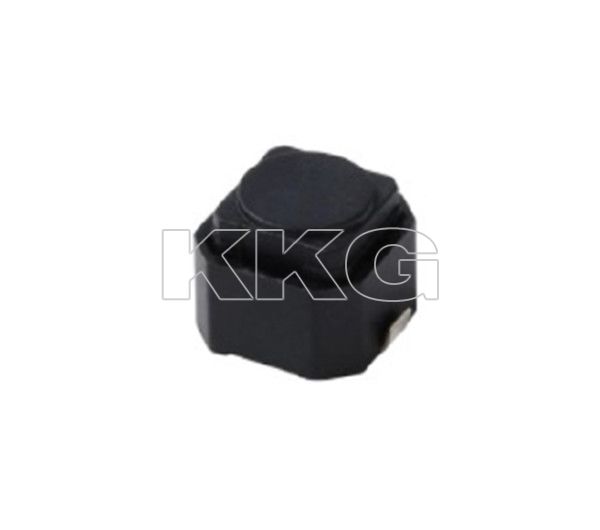

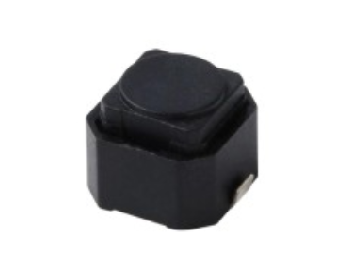

TK-1066 Series

SMT VERTICAL Type, 防水輕觸開關 FEATURE 6.00mm*6.00mm, surface mounting type.. ?Reflow solderable. APPLICATIONS ? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-20℃ to +70℃
操作力/Operating force	100gf 160gf 260gf
行程/Travel	1.3mm
尺寸/Dimension	6.00*6.00mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 0.5A
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC

DIMENSIONS

Unit:mm

Model	Dimensions

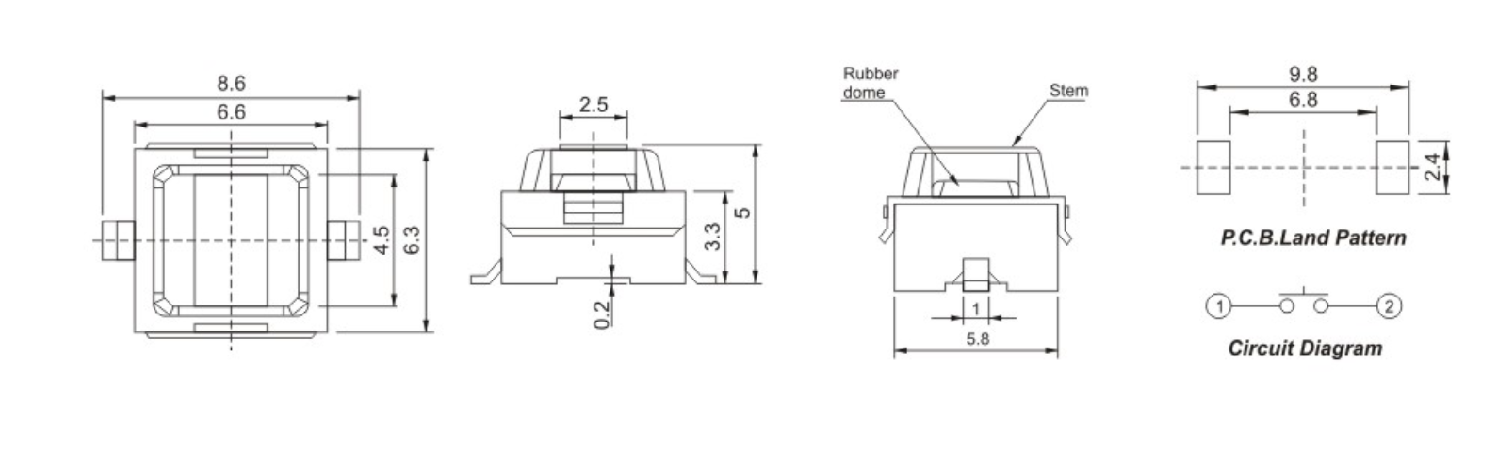

TK-1066

Model	Dimensions

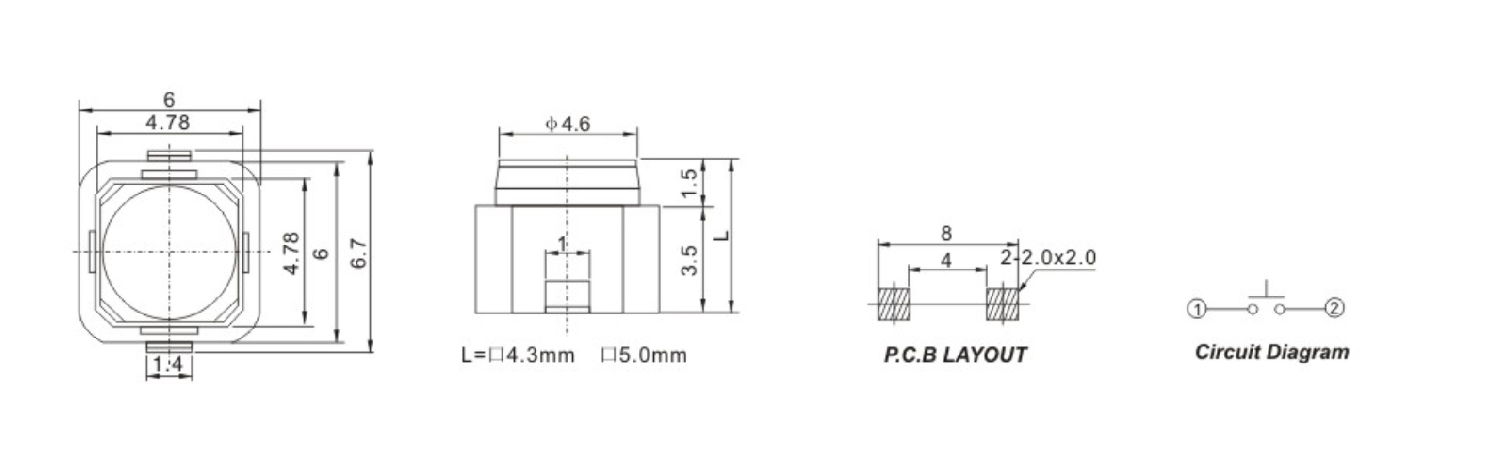

TK-1066B
