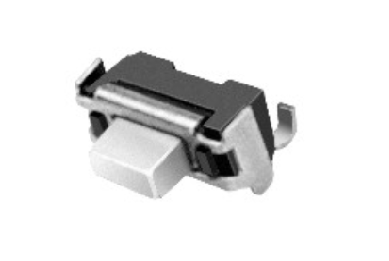

Tact Switch
TK-3612B
DIP VERTICAL Type, 輕觸開關
4.5mm*1.80mm
FEATURE
?3.0x2.8x1.4mm, surface mounting type..
?Reflow solderable.
APPLICATIONS
? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 工作溫度範圍/Operating temperature range | -30℃ to +85℃ |
|---|
| 操作力/Operating force | 100、160、260gf |
|---|
| 行程/Travel | 0.25mm |
|---|
| 尺寸/Dimension | 4.50*1.80mm |
|---|
| 使用壽命/Operating life | 100,000 cycles |
|---|
| 最大額定值/Maximum ratings | DC12V 50mA |
|---|
| 絕緣電阻/Insulation resistance | 100M? min |
|---|
| 耐電壓/Voltage proof | 1 minute 250V AC |
|---|

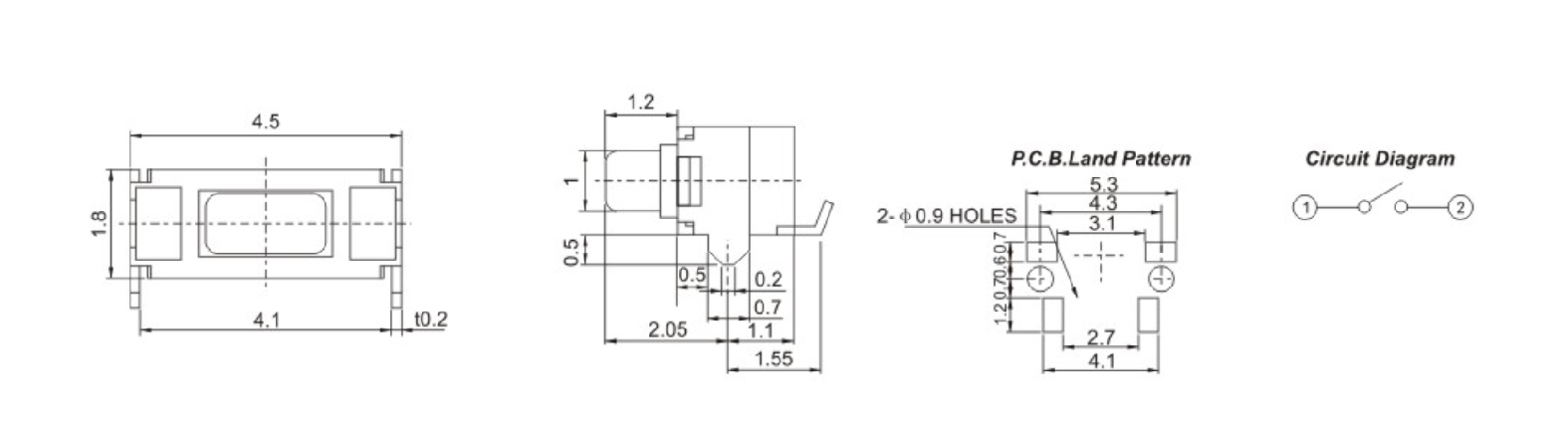

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
TK-3612B
|  |
