Tact Switch
TK-066DC
SMT VERTICAL Type, 輕觸開關
6mm*6mm
FEATURE
?3.0x2.8x1.4mm, surface mounting type..
?Reflow solderable.
APPLICATIONS
? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 工作溫度範圍/Operating temperature range | -20℃ to +70℃ |
|---|
| 操作力/Operating force | 100、160gf |
|---|
| 行程/Travel | 0.25mm |
|---|
| 尺寸/Dimension | 6 * 6mm |
|---|
| 使用壽命/Operating life | 100,000 cycles |
|---|
| 最大額定值/Maximum ratings | DC12V 50mA |
|---|
| 絕緣電阻/Insulation resistance | 100M? min |
|---|
| 耐電壓/Voltage proof | 1 minute 250V AC |
|---|

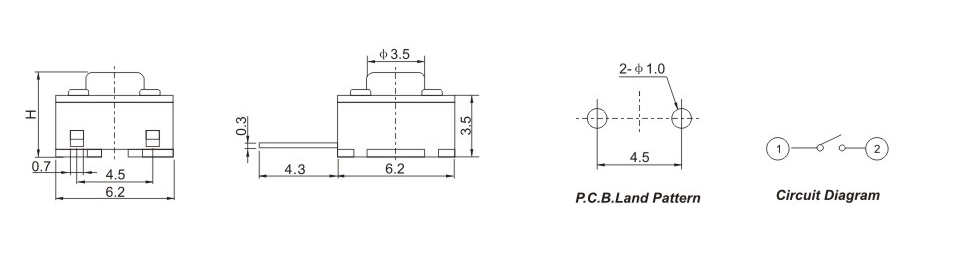

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
TK-066DC
|  |
