TOUCH SWITCH 輕觸開關

Tact Switch

TK-1010

SMT VERTICAL Type, 輕觸開關 10mm*10mm FEATURE ?3.0x2.8x1.4mm, surface mounting type.. ?Reflow solderable. APPLICATIONS ? For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-20℃ to +70℃
操作力/Operating force	100、160gf
行程/Travel	0.25mm
尺寸/Dimension	10*10mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 50mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC

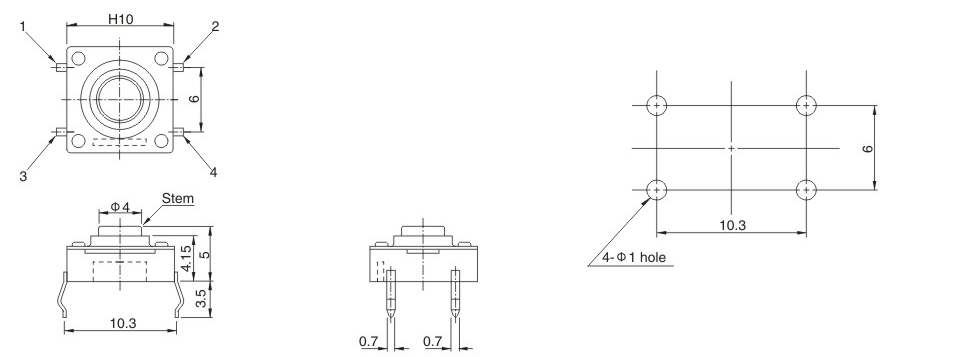

DIMENSIONS

Unit:mm

Model	Dimensions
TK-1010

Model

Dimensions

TK-1010
