KEYBOARD SWITCH 鍵盤開關(guān)

KEYBOARD SWITCH

PK150B

No sound, heavy strength，鍵盤開關(guān) 15.60mm * 15.60mm H = 15.2mm It has the advantages of good touch, long-term durability, high stability, strong sensitivity, no sound and heavy strength application ·Suitable for mechanical keyboar

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
觸覺力/Tactile force	50±10gf
行程/Travel	2.0mm
尺寸/Dimension	15.60* 15.60mm
使用壽命/Operating life	1,000,000 cycles
最大額定值/Maximum ratings	DC12V 10mA
絕緣電阻/Insulation resistance	200M? min
耐電壓/Voltage proof	1 minute 250V AC

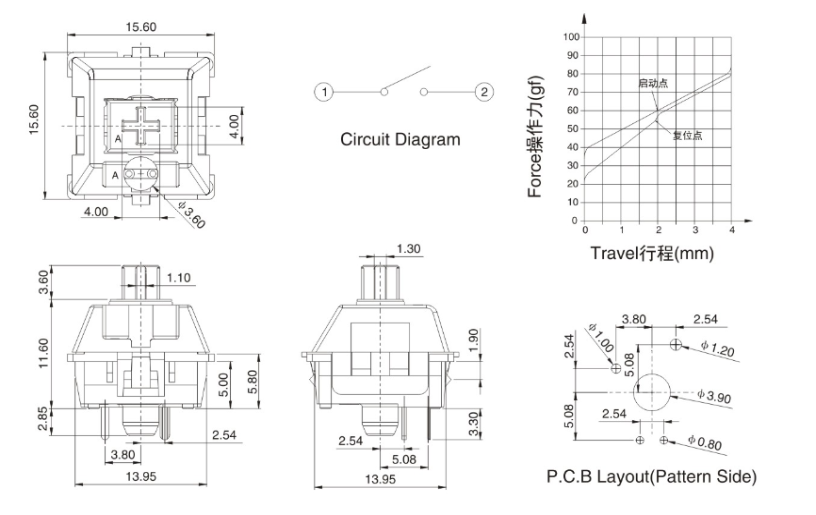

DIMENSIONS

Unit:mm

Model	Dimensions
PK150B

Model

Dimensions

PK150B
