KEYBOARD SWITCH 鍵盤開關

KEYBOARD SWITCH

PK150R

Sense of breaking No sound，鍵盤開關 15.60mm * 15.60mm H = 15.2mm It has the advantages of good touch, long-term durability, high stability, strong sensitivity, Sense of breaking No sound application ·Suitable for mechanical keyboar

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
觸覺力/Tactile force	50±10gf
行程/Travel	2.0mm
尺寸/Dimension	15.60* 15.60mm
使用壽命/Operating life	1,000,000 cycles
最大額定值/Maximum ratings	DC12V 10mA
絕緣電阻/Insulation resistance	200M? min
耐電壓/Voltage proof	1 minute 250V AC

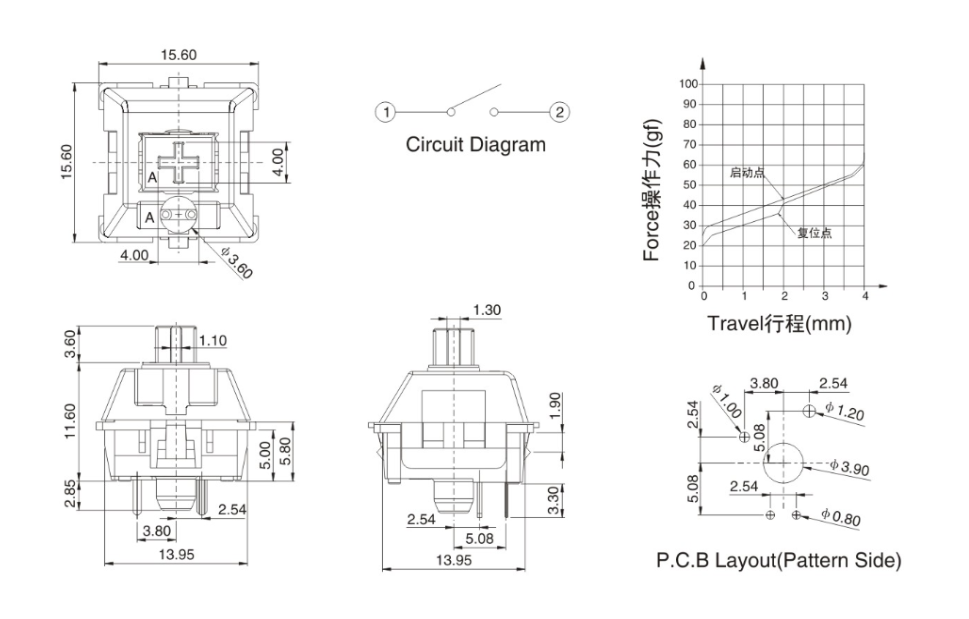

DIMENSIONS

Unit:mm

Model	Dimensions
PK150R

Model

Dimensions

PK150R
