KEYBOARD SWITCH 鍵盤開關

KEYBOARD SWITCH

PK-150H

超薄型, 鍵盤開關 15.60mm*15.60mm H=15.2mm With good contact, long-term durability, high stability, strong sensitivity, dust and other advantages application ·Suitable for mechanical keyboard

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
觸覺力/Tactile force	60±10gf
行程/Travel	2.0mm
尺寸/Dimension	15.00* 15.05mm
使用壽命/Operating life	50,000,000 cycles
最大額定值/Maximum ratings	DC12V 10mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC

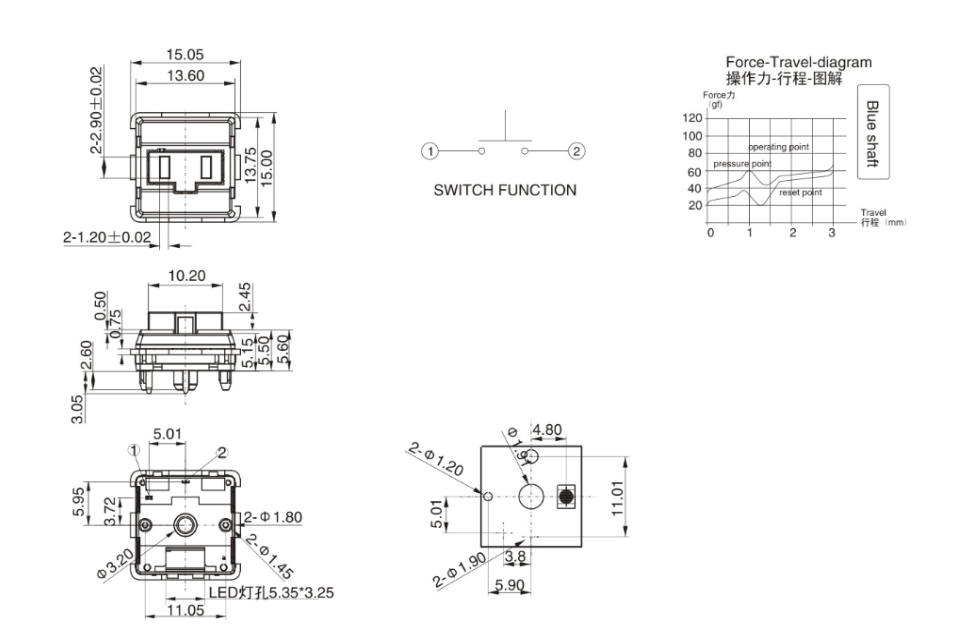

DIMENSIONS

Unit:mm

Model	Dimensions
PK-150H

Model

Dimensions

PK-150H
