SIM Card Connectors
SIM-3032
SIM卡座
NANO SIM 6P H1.25 掀蓋式A款
FEATURE
surface mounting type..
?Reflow solderable.
Application:
Digital products, computers, communication products, household appliances, etc.
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 工作溫度範(fàn)圍/Operating temperature range | -25℃ ~90℃ |
|---|
| 接觸電阻/Contact resistance | ≤100m? |
|---|
| 尺寸/Dimension | 11.2*14*1.4mm |
|---|
| 使用壽命/Operating life | 5000 cycles |
|---|
| 最大額定值/Maximum ratings | DC 5V 0.5A |
|---|
| 絕緣電阻/Insulation resistance | ≥100M? |
|---|
| 耐電壓/Voltage proof | 500V AC |
|---|

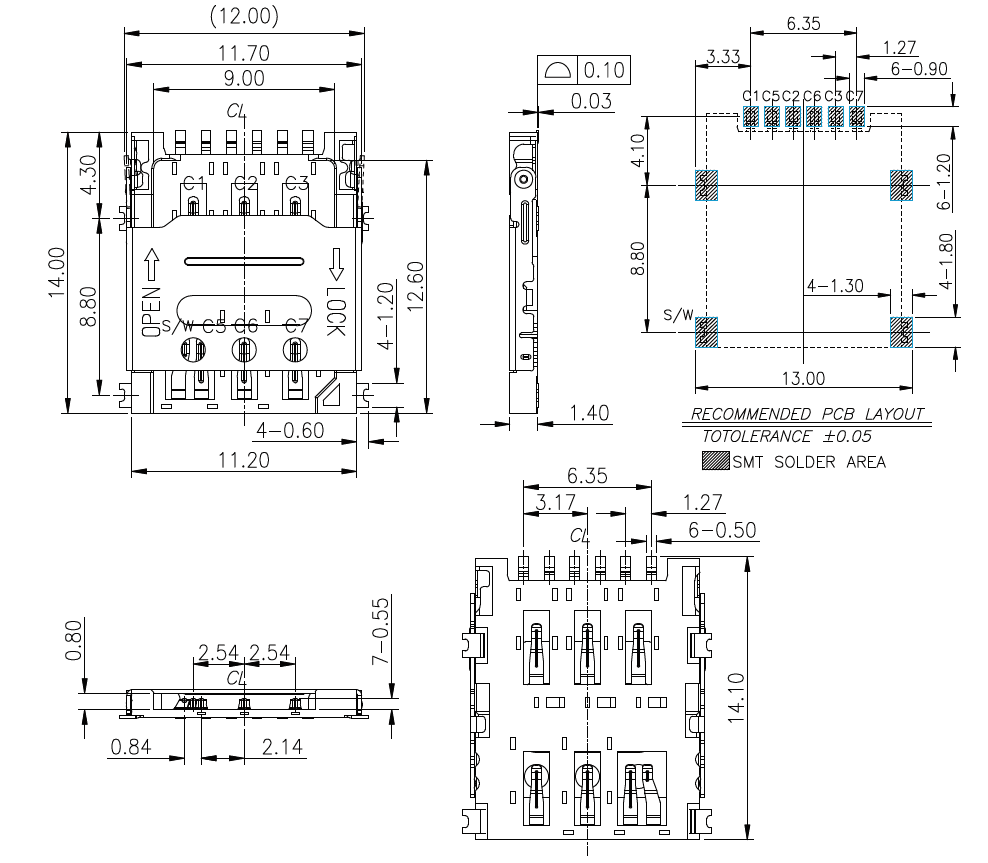

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
SIM-3032
|  |
Unit:mm
Unit:mm
Unit:mm
