SIM卡座

SIM Card Connectors

SIM-1272

SIM卡座 NANO SIM TOP MOUNT SINK TYPE PUSH FEATURE surface mounting type.. ?Reflow solderable. Application: Digital products, computers, communication products, household appliances, etc.

檔案下載產(chǎn)品詢價(jià)

SIM-1272

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範(fàn)圍/Operating temperature range	-25℃ ~90℃
接觸電阻/Contact resistance	≤100m?
尺寸/Dimension	11.514.351.5mm
使用壽命/Operating life	5000 cycles
最大額定值/Maximum ratings	DC 5V 0.5A
絕緣電阻/Insulation resistance	≥100M?
耐電壓/Voltage proof	500V AC

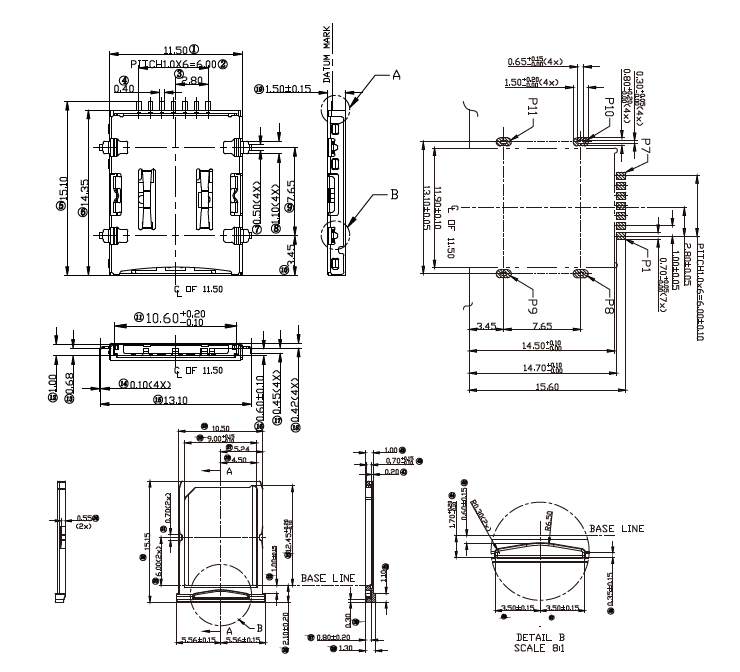

DIMENSIONS

Unit:mm

Model	Dimensions
SIM-1272

Model

Dimensions

SIM-1272

Unit:mm
