SIM-3962

SIM卡座 1.35H雙NANO+T 3選2卡座 FEATURE surface mounting type.. ?Reflow solderable. Application: Digital products, computers, communication products, household appliances, etc.

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-25℃ ~90℃
接觸電阻/Contact resistance	≤100m?
尺寸/Dimension	18.828.251.35mm
使用壽命/Operating life	5000 cycles
最大額定值/Maximum ratings	DC 5V 0.5A
絕緣電阻/Insulation resistance	≥100M?
耐電壓/Voltage proof	500V AC

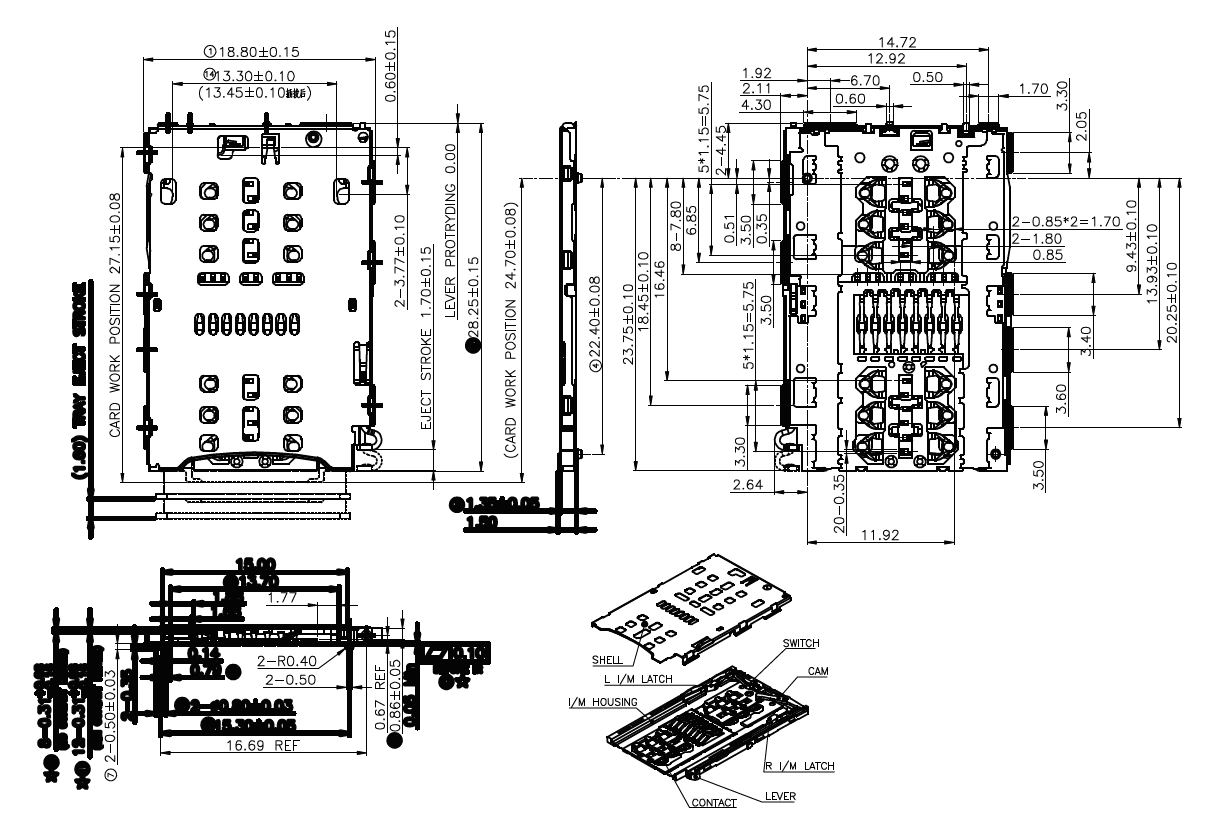

DIMENSIONS

Unit:mm

Model	Dimensions
SIM-3962

Model

Dimensions

SIM-3962

Unit:mm
