SLIDE SWITCH 滑動開關

Sub-miniature Slide Switches

SS-2302

10mm*3.5mm 小型貼片撥動開關 Function ?2P3T function ?SMT design ?1.50mm travel ?Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-25℃ to +80℃
操作力/Operating force	250gf
行程/Travel	1.5mm
尺寸/Dimension	10mm*3.5mm
使用壽命/Operating life	100,00 cycles
最大額定值/Maximum ratings	DC4V 300mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 250V AC

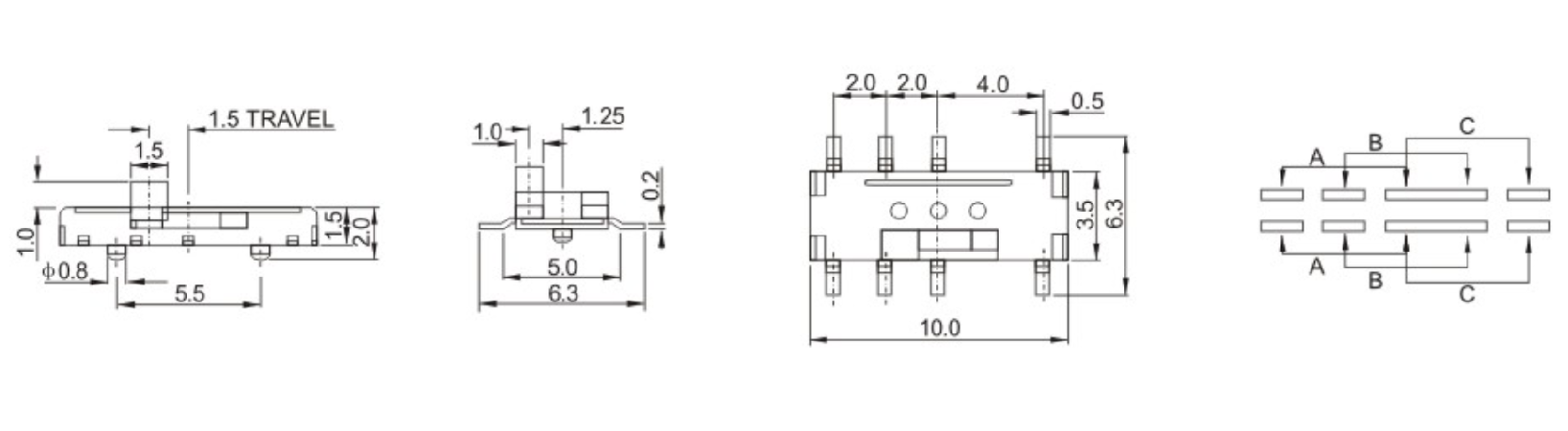

DIMENSIONS

Unit:mm

Model	Dimensions
SS-2302

Model

Dimensions

SS-2302 SS-2302

Unit:mm
