       SLIDE SWITCH 滑動開關


























        SK-1213













       Sub-miniature Slide Switches


      SK-1213

      7.20mm*3.00mm 小型貼片撥動開關
Function
?1P2T function
?SMD design
?1.5mm travel
?Compact design

APPLICATIONS
The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound











      產品說明


      COMMON SPECIFICATIONS

      Characteristics
      		Specification
      工作溫度範圍/Operating temperature range-25℃ to +80℃
      操作力/Operating force160gf
      行程/Travel1.5mm
      尺寸/Dimension7.20mm*3.00mm
      使用壽命/Operating life100,00 cycles
      最大額定值/Maximum ratingsDC4V 300mA
      絕緣電阻/Insulation resistance100M? min
      耐電壓/Voltage proof1 minute 500V AC

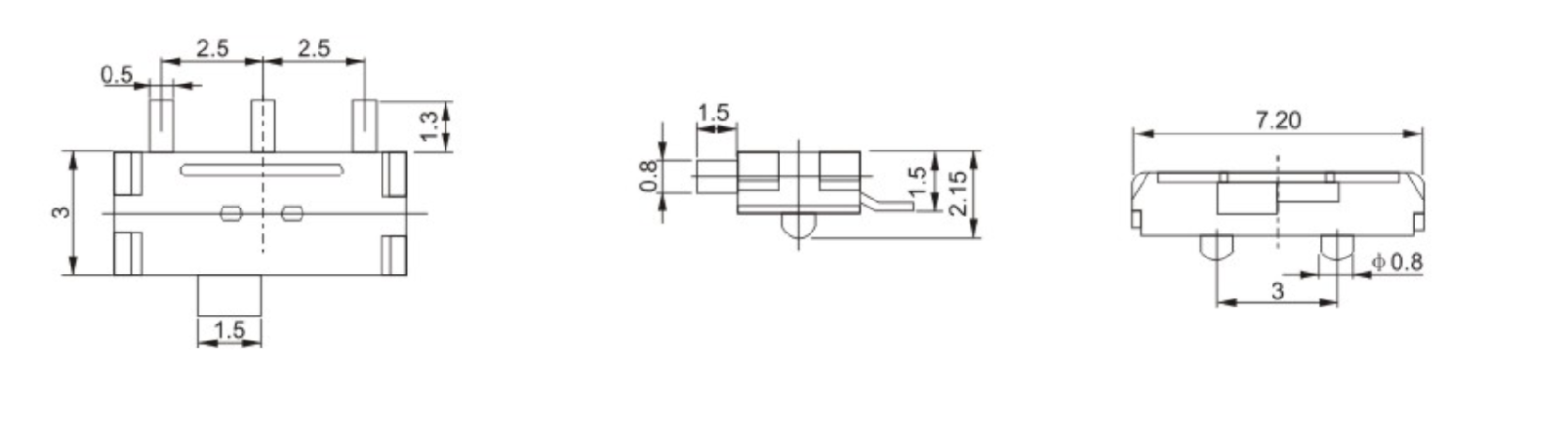

      DIMENSIONS
      Unit:mm
      ModelDimensions



      SK-1213SK-1213



      		SK-1213
      Unit:mm

      Unit:mm
