SD Card Connectors
SD-2992
SD卡座
SD NO PUSH 4.0板上
FEATURE
surface mounting type..
?Reflow solderable.
Application:
Digital products, computers, communication products, household appliances, etc.
產(chǎn)品說(shuō)明
COMMON SPECIFICATIONS Characteristics Specification 工作溫度範(fàn)圍/Operating temperature range -25℃ ~90℃ 接觸電阻/Contact resistance ≤100m? 尺寸/Dimension 27.75*20*2.9mm 使用壽命/Operating life 5000 cycles 最大額定值/Maximum ratings DC 5V 0.5A 絕緣電阻/Insulation resistance ≥100M? 耐電壓/Voltage proof 500V AC

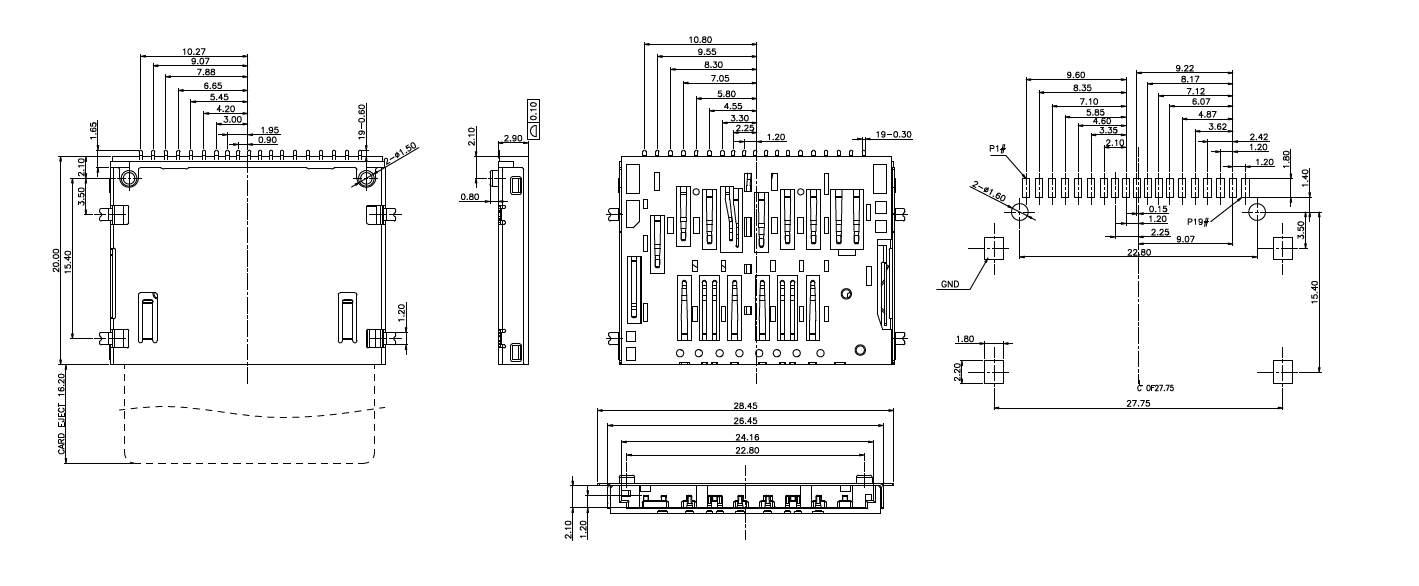

DIMENSIONS Unit:mm
Model Dimensions
SD-2992
Unit:mm
