SLIDE SWITCH 滑動開關(guān)

Sub-miniature Slide Switches

SK-1321AD

12.95mm*3.50mm 小型插件撥動開關(guān) Function ?1P3T function ?DIP design ?2.0mm travel ?Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-25℃ to +80℃
操作力/Operating force	300gf
行程/Travel	2.0mm
尺寸/Dimension	12.95mm*3.50mm
使用壽命/Operating life	100,00 cycles
最大額定值/Maximum ratings	DC4V 300mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 500V AC

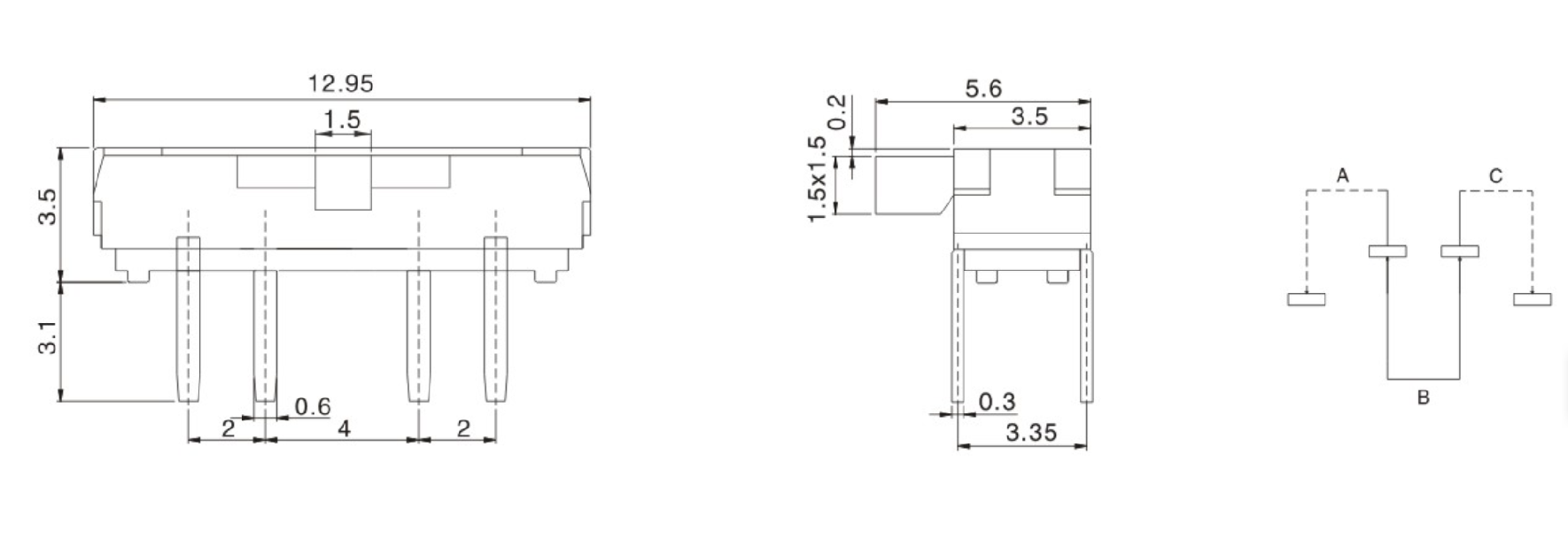

DIMENSIONS

Unit:mm

Model	Dimensions
SK-1321AD

Model

Dimensions

SK-1321AD

Unit:mm
