SLIDE SWITCH 滑動開關

Sub-miniature Slide Switches

SK-1210A

11.00mm*3.55mm 小型貼片撥動開關 Function ?1P2T function ?SMD design ?2.7mm travel ?Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-25℃ to +80℃
操作力/Operating force	250gf
行程/Travel	2.7mm
尺寸/Dimension	11.00mm*3.55mm
使用壽命/Operating life	100,00 cycles
最大額定值/Maximum ratings	DC4V 300mA
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 500V AC

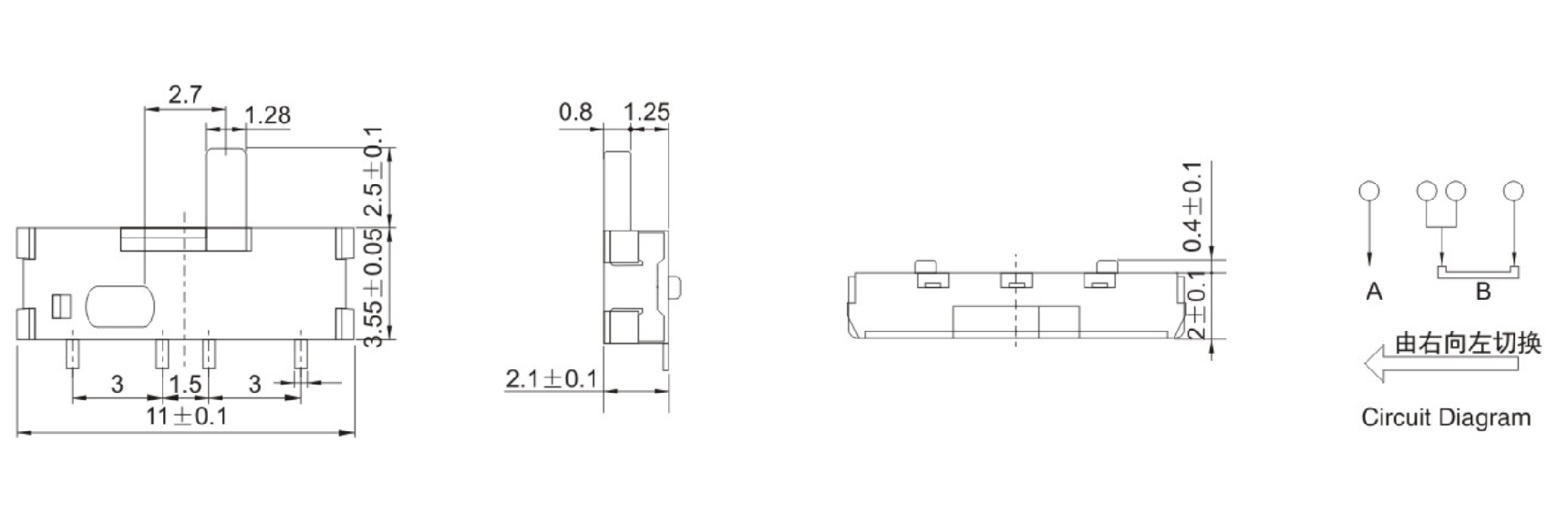

DIMENSIONS

Unit:mm

Model	Dimensions
SK-1210A

Model

Dimensions

SK-1210A

Unit:mm
