SLIDE SWITCH 滑動開關(guān)

Sub-miniature Slide Switches

SS-12D11

13.40mm*6.60mm 大電流插件撥動開關(guān) Function ?1P2T function ?DIP design ?2.2mm travel ?Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-25℃ to +80℃
操作力/Operating force	260gf±100gf
行程/Travel	2.2mm
尺寸/Dimension	13.40mm*6.60mm
使用壽命/Operating life	100,00 cycles
最大額定值/Maximum ratings	(3A 250V) (1.5A 125V)
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 500V AC

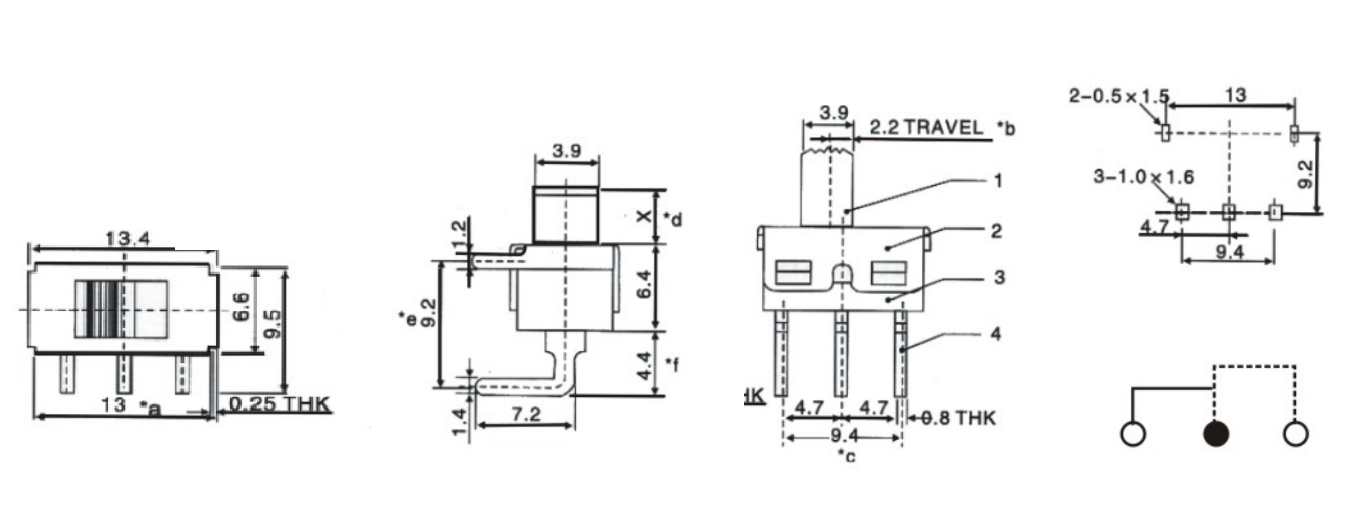

DIMENSIONS

Unit:mm

Model	Dimensions
SS-12D11

Model

Dimensions

SS-12D11

Unit:mm
