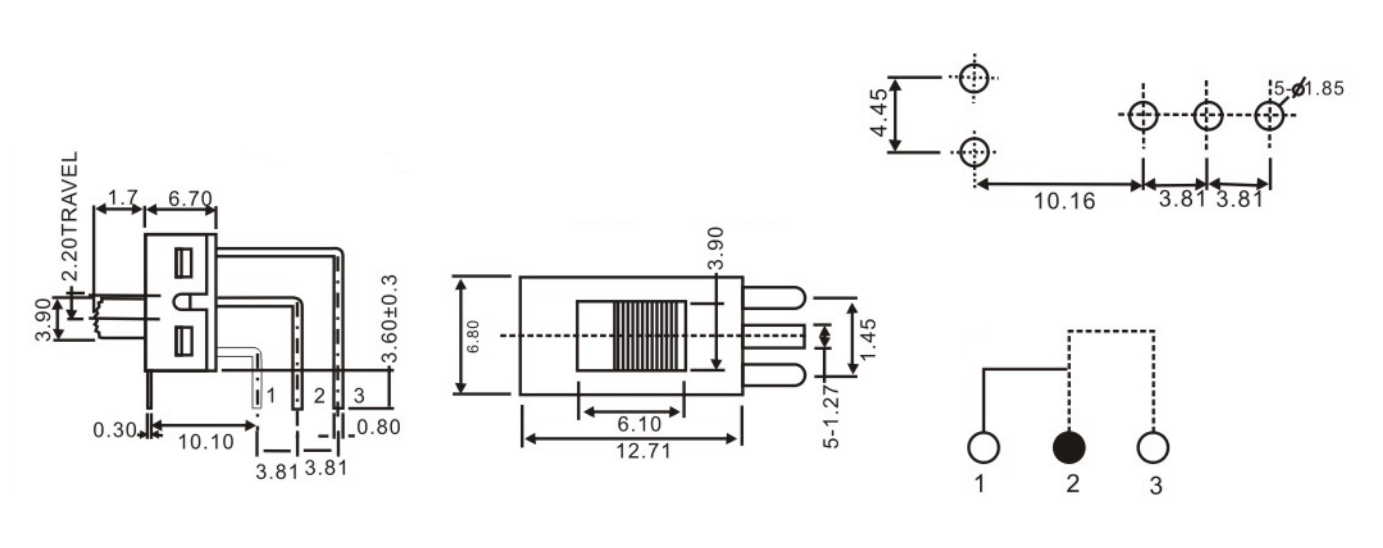

SS-12D11A

12.71mm*6.80mm 大電流插件撥動開關 Function ?1P2T function ?DIP design ?2.2mm travel ?Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristic	Specification
工作溫度範圍/Operating temperature range	-25℃ to +80℃
操作力/Operating force	250gf±100gf
行程/Travel	2.2mm
尺寸/Dimension	12.71mm*6.80mm
使用壽命/Operating life	100,00 cycles
最大額定值/Maximum ratings	(3A 250V) (1.5A 125V)
絕緣電阻/Insulation resistance	100M? min
耐電壓/Voltage proof	1 minute 500V AC
