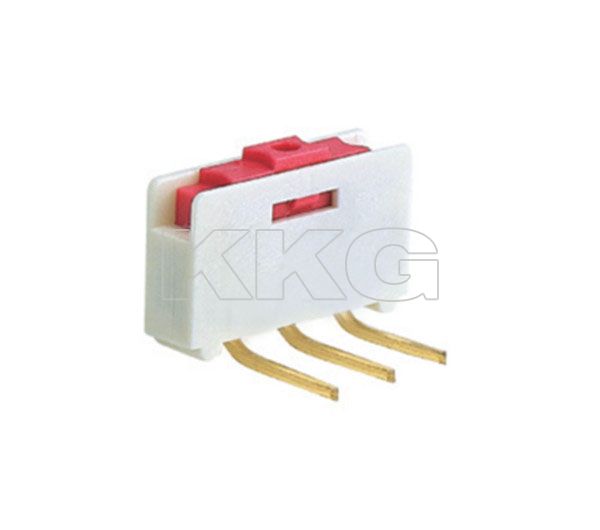

SK-10 series

10.00mm*6.40mm 小型插件撥動開關 Function ?1P2T function ?DIP design ?1.6mm travel ?Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
操作力/Operating force	800gf
行程/Travel	1.60mm
尺寸/Dimension	10.00* 6.40mm
使用壽命/Operating life	1000 cycles
最大額定值/Maximum ratings	(0.5A 12V)(0.3A 24V)
絕緣電阻/Insulation resistance	30M? min
耐電壓/Voltage proof	1 minute 250V AC

DIMENSIONS

Unit:mm

Model	Dimensions

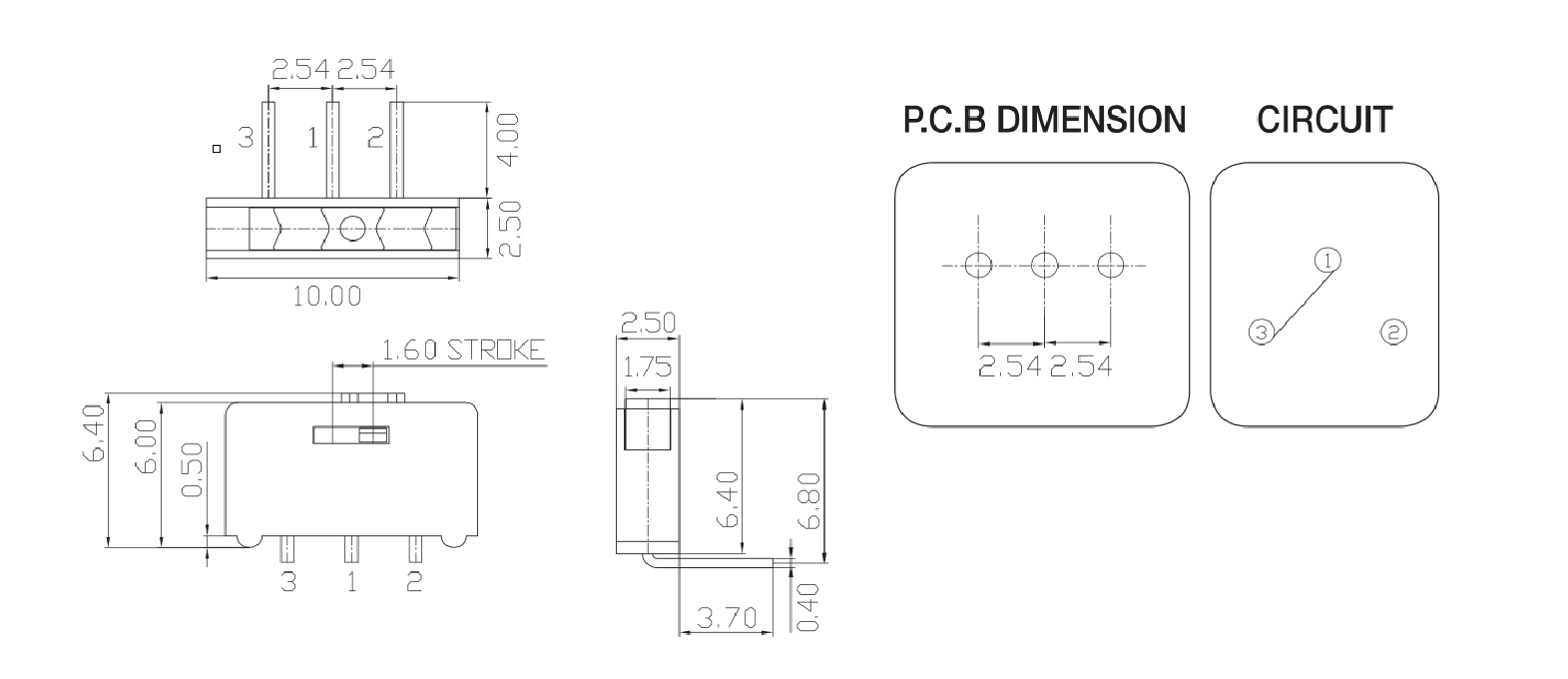

SK-10H

Model	Dimensions

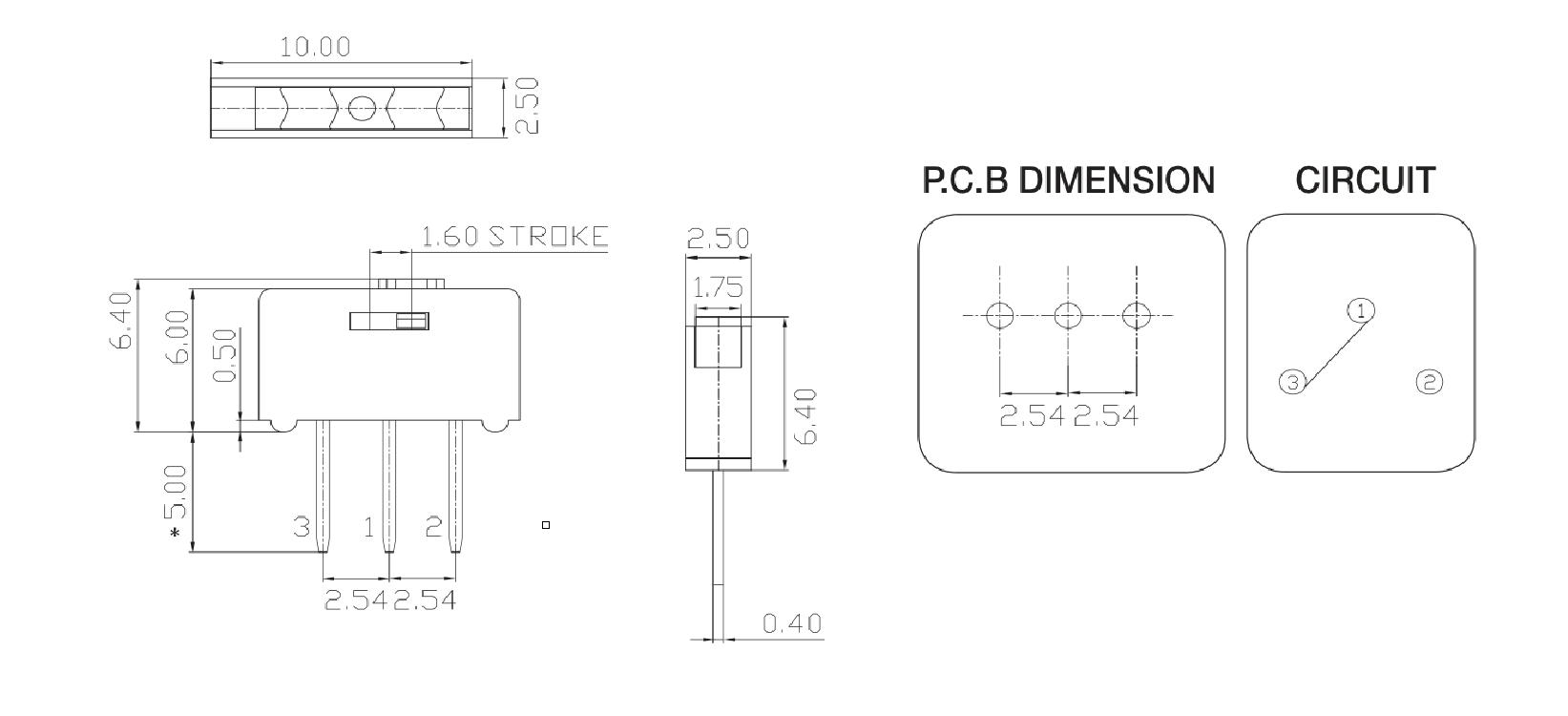

SS-10
