SLIDE SWITCH 滑動開關

Sub-miniature Slide Switches

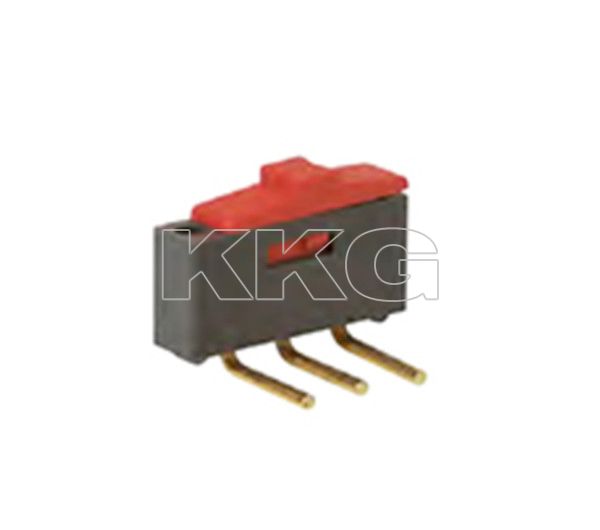

SK-10D series

10.00mm*6.40mm 小型插件撥動開關 Function ?1P2T function ?DIP design ?1.6mm travel ?Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
操作力/Operating force	250gf±150gf
行程/Travel	1.60mm
尺寸/Dimension	10.00* 6.40mm
使用壽命/Operating life	2000 cycles
最大額定值/Maximum ratings	(0.5A 12V)(0.3A 24V)
絕緣電阻/Insulation resistance	30M? min
耐電壓/Voltage proof	1 minute 250V AC

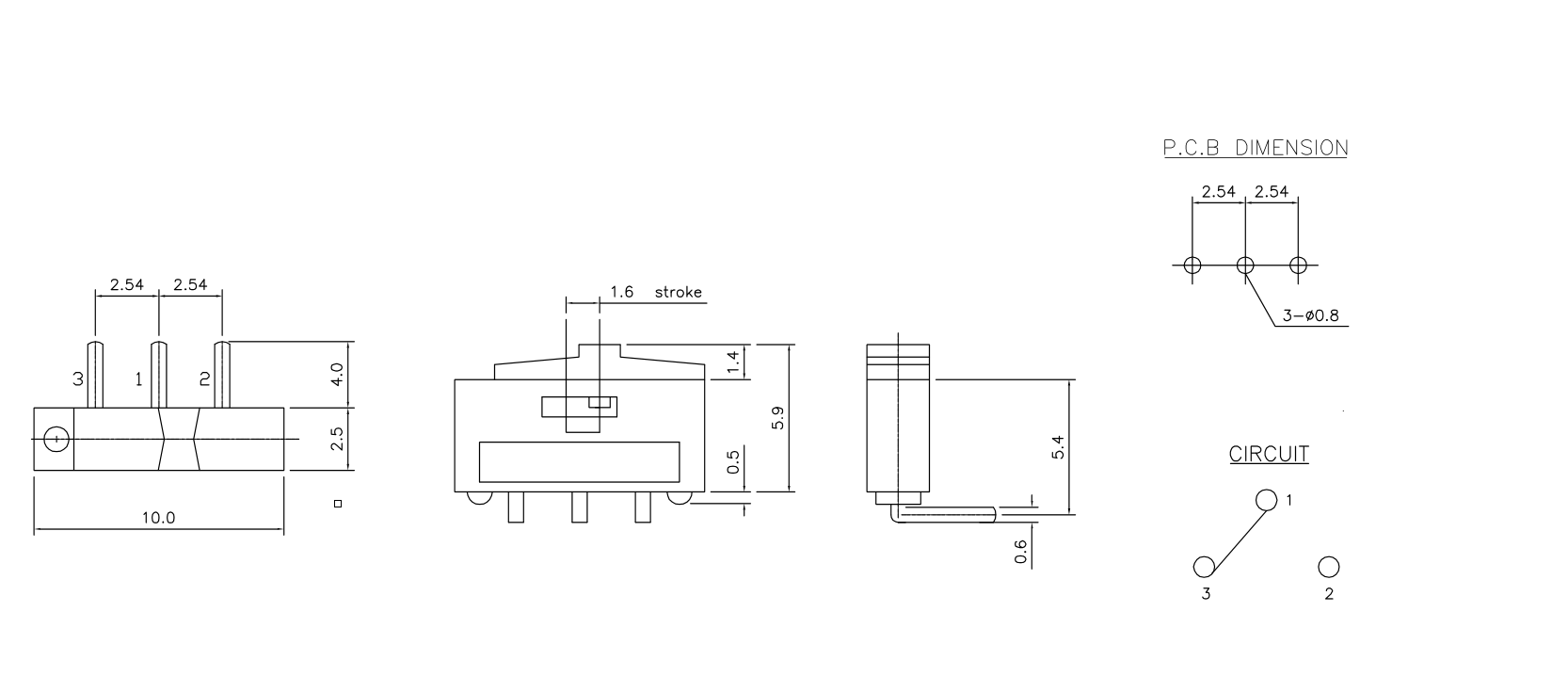

DIMENSIONS

Unit:mm

Model	Dimensions
SK-10H

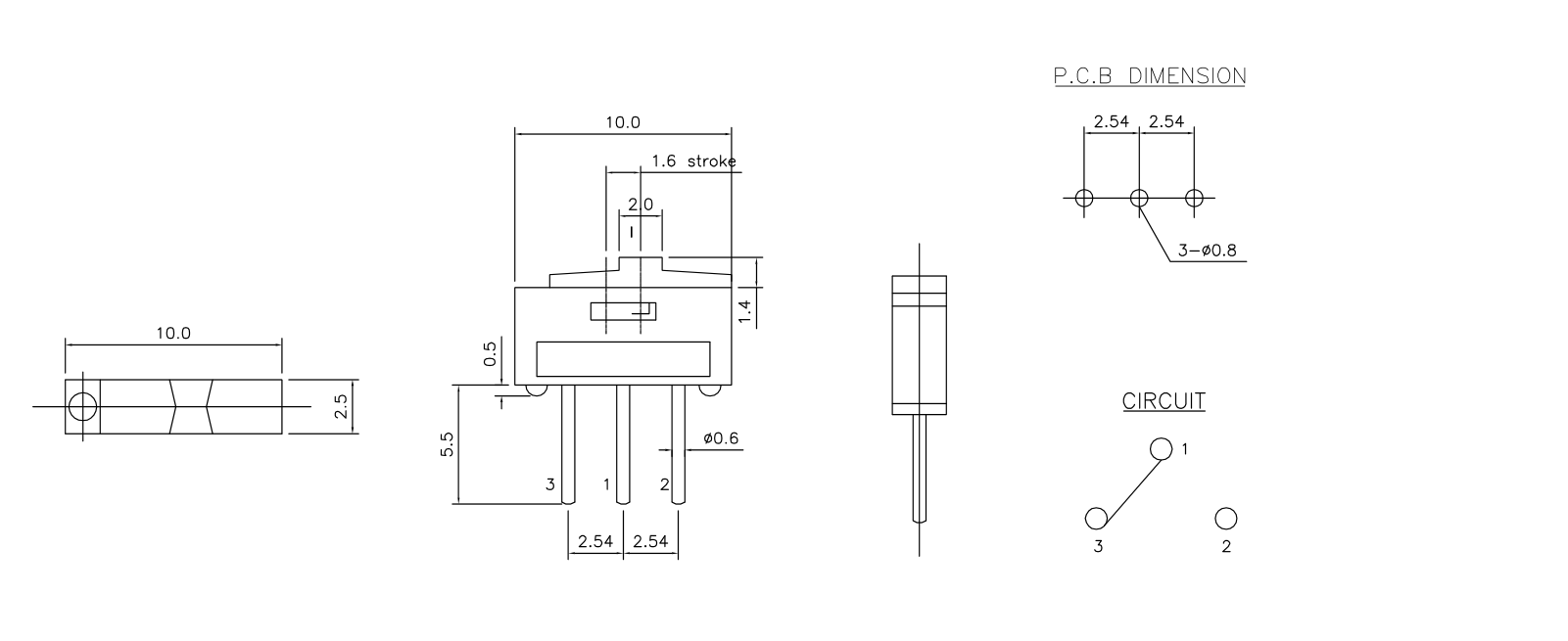

Model	Dimensions
SS-10
