CODING SWITCH 編碼開關

NEW MINI ROTARY DIP SWITCHES

RS-03 series

7.20mm*7.20mm 迷你旋轉編碼開關 FEATURE ?7.20mm*7.20mm ?0-9 Position APPLICATIONS ? Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
接觸電阻/Contact resistance	80mA
操作力/Operating force	120gf±30gf
尺寸/Dimension	7.20*7.20mm
使用壽命/Operating life	25,000 cycles
絕緣電阻Insulation resistance	100mA
防水等級/waterproof level	IP67

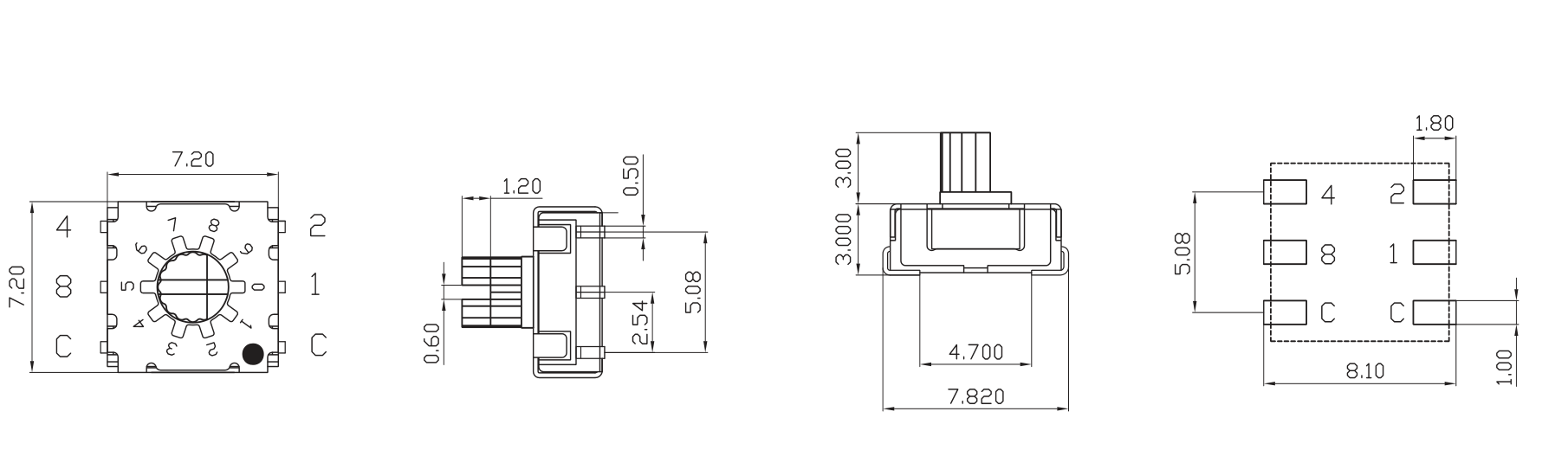

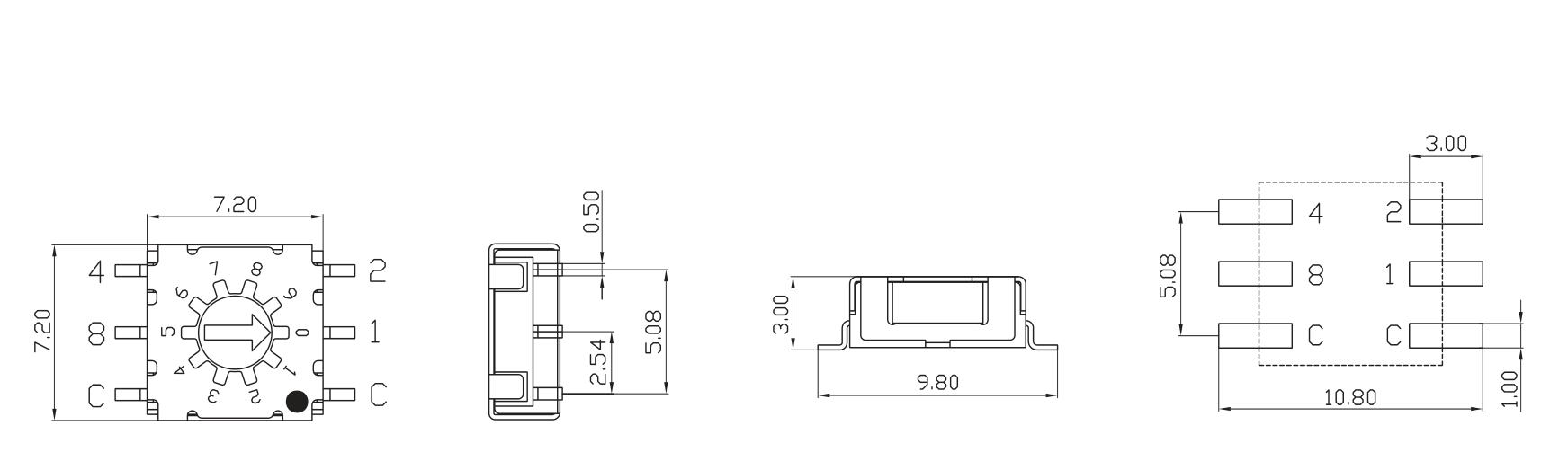

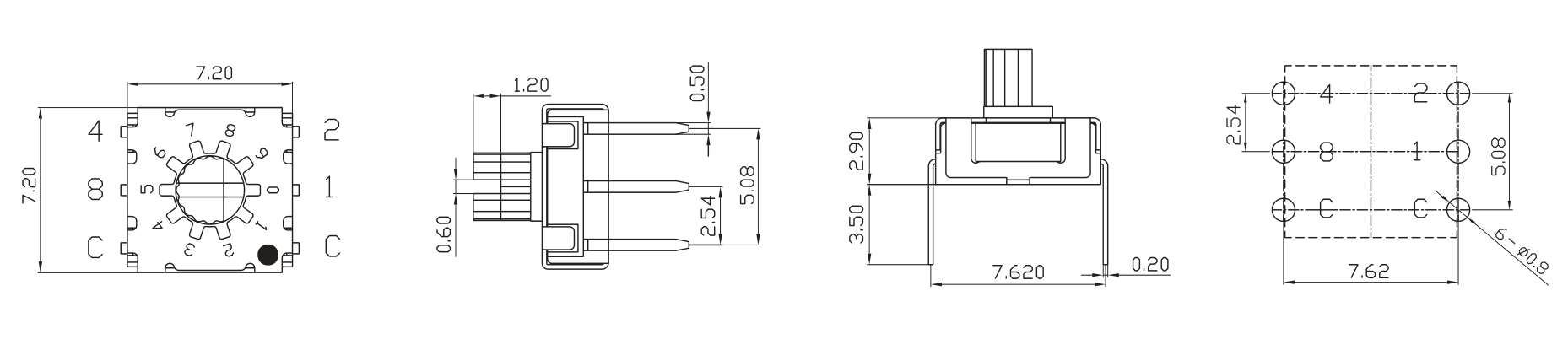

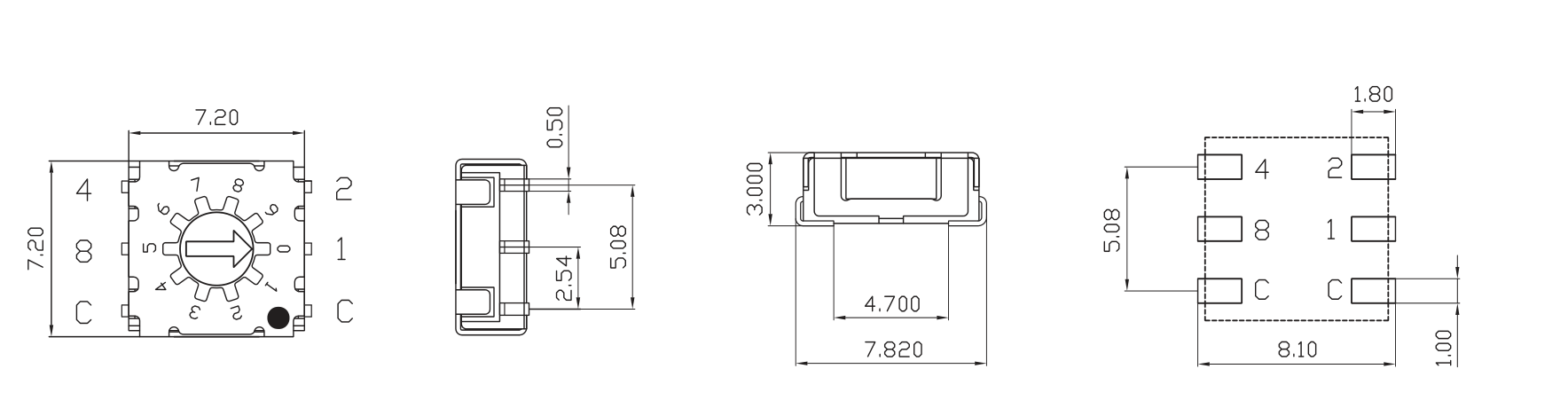

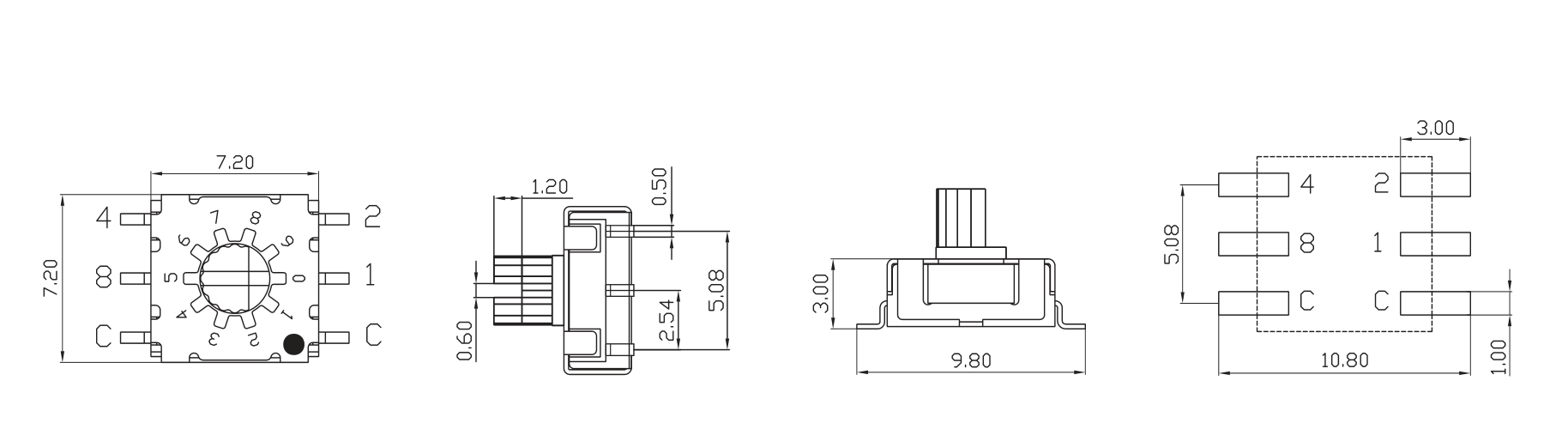

DIMENSIONS

Unit:mm

Model	Dimensions
RS-03-01

Unit:mm

Unit:mm

Model	Dimensions
RS-03-02

Model

Dimensions

RS-03-03 RS-03 series

RS-03 series

Model	Dimensions
RS-03-04

Model

Dimensions

RS-03-05 RS-03 series

RS-03 series
