TOGGLE SWITCH 鈕子開關(guān)

Waterproof Twizz switch

TG-SW2TE series

立式臥式DIP IP67 防水切換開關(guān) FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages miniature waterproof APPLICATIONS Suitable for consumer products, computer products, test instruments, communication equipment, etc

檔案下載產(chǎn)品詢價

SW2TE-series

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
CONTACT RATING	Max 0.4 VA max @ 48 VAC or DC.
MECHANICAL LIFE	minimum 40,000 operations.
CONTACT RESISTANCE	50 m Ω max.
INSULATION RESISTANCE	1,000MΩmin.
DIELECTRIC STRENGTH	500 Vrms min.@sea level.
OPERATING TEMPERATURE	-20°C to 85°C.

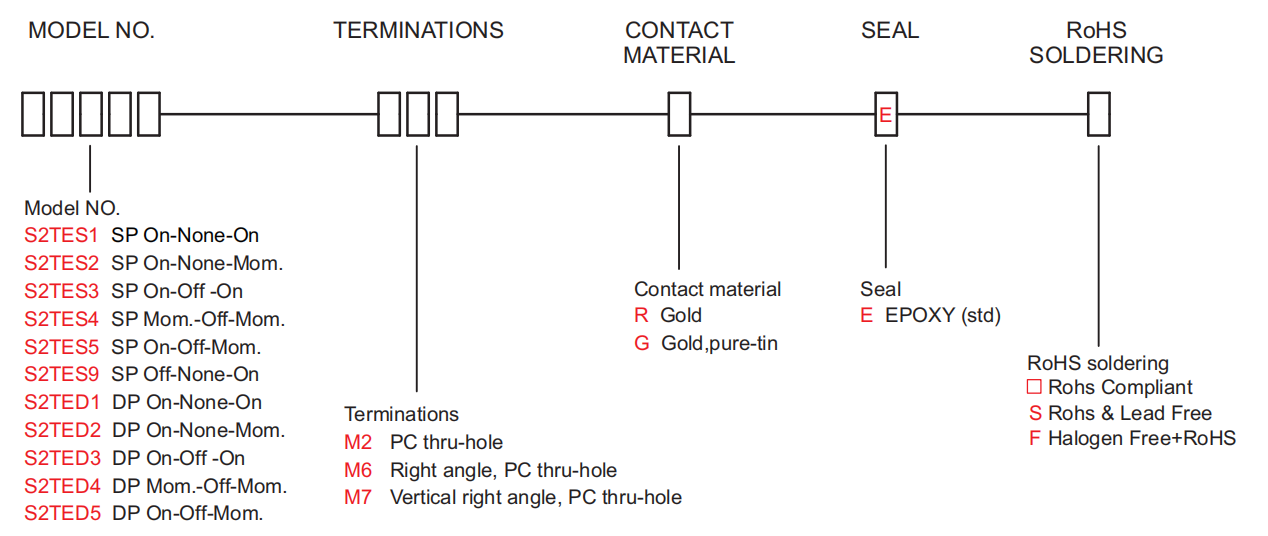

HOW TO ORDER

TG-SW2TE series

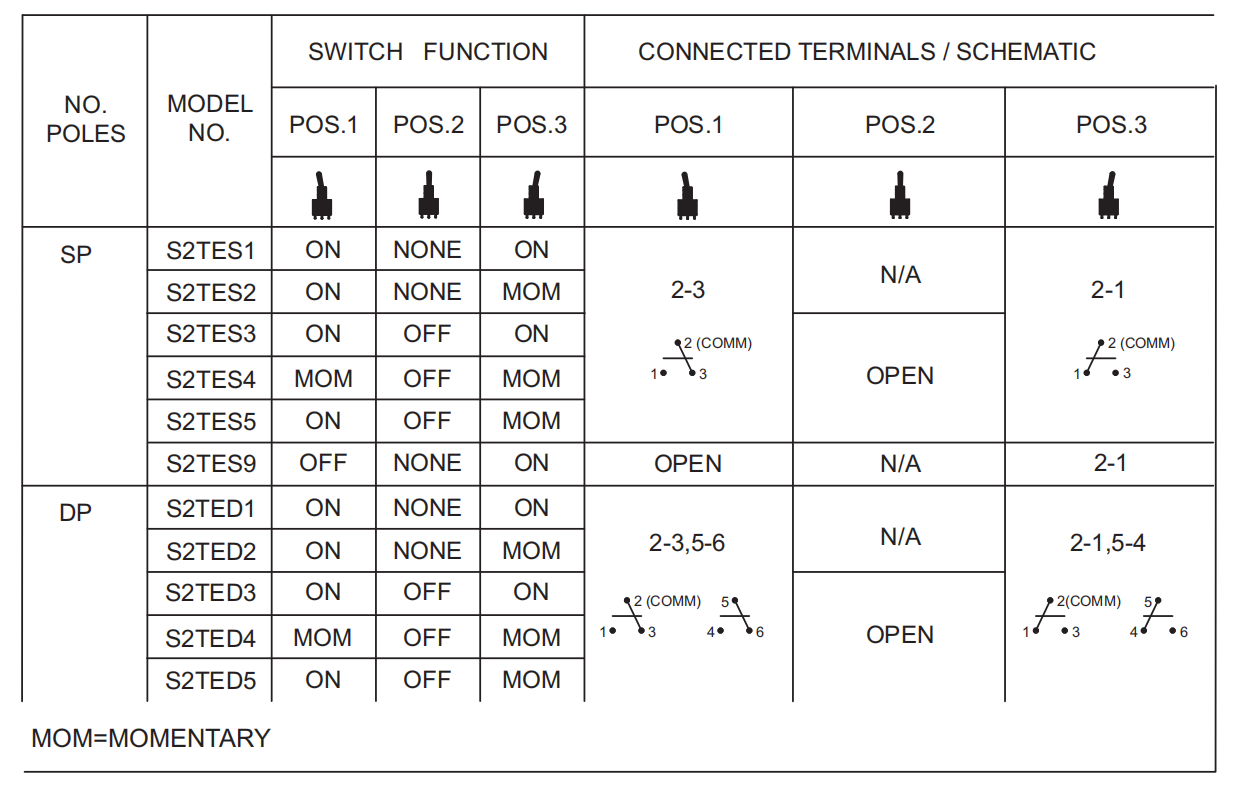

SWITCH FUNCTION

TG-SW2TE series
