DC Power Jack Female Socket 7.70mm x 5.10mm PCB Panel Chassis Mount
DC057
臥式SMT 直流電源DC插座

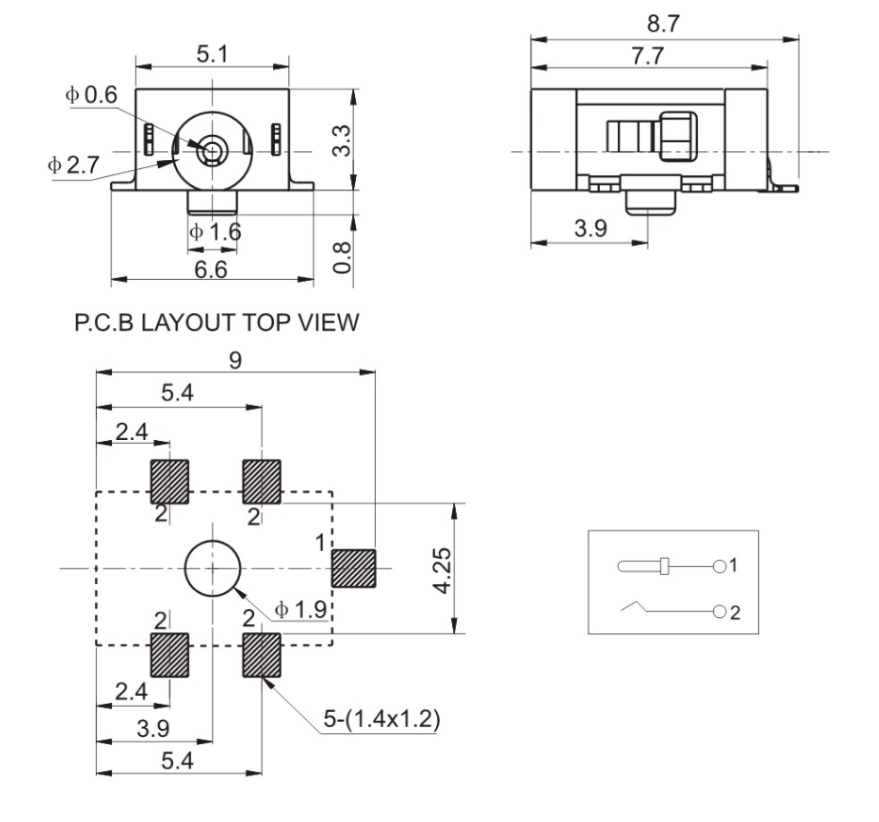

7.70mm*5.10mm H=3.30mm
STRUCTURE
DC socket is a kind of socket matching with the special power supply for computer display. It is composed of transverse socket, longitudinal socket, insulating base, forked contact shrapnel and directional keyway. The two forked contact shrapnel are located in the center of the base, arranged vertically and horizontally, and are not connected with each other
APPLICATIONS
Video products, digital products, remote control communication products, household appliances, security products, etc
