USB 3.0-3501

USB 3.0 AF90° 正向沉板3.3H FEATURE ? 13.1mm*13.05mm ? Horizontal 90 degree SMD ? Reflow soldering APPLICATIONS ? Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Current Rating	1A/contact terminal
額定電壓/Voltage Rating	30V DC
接觸電阻/Contact Resistance	30M?
尺寸/Dimension	13.1mm*13.05mm
電壓/Dielectric Withstabding Voltage	100V DC
絕緣電阻/Insulation Resistance	100M? min

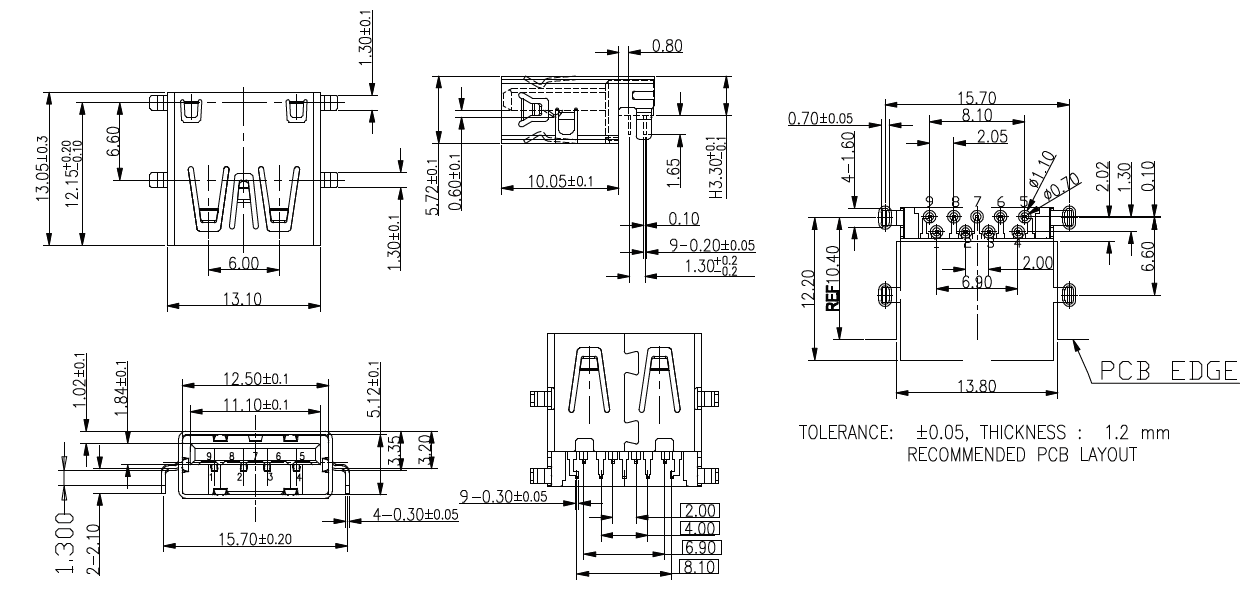

DIMENSIONS

Unit:mm

Model	Dimensions
USB 3.0-3501

Unit:mm
