TM-4175

貼片五向開關 FEATURE ? 7.40mm*7.40mm ? 4 directions + middle press ? SMD installation APPLICATIONS ? Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定值/Rating	DC12V，50mA Max
接觸電阻/Contact Resistance	500mз Max
中心推操作力/Center Push Operating Force	260±70gf
中心推行程/Center Push Stroke	0.15±0.1mm
四方向行程/4-Way Direction Stroke	0.2±0.1mm
四方向操作力/4-Way Direction Operating Force	160±30gf
壽命/Life Cycles	50,000

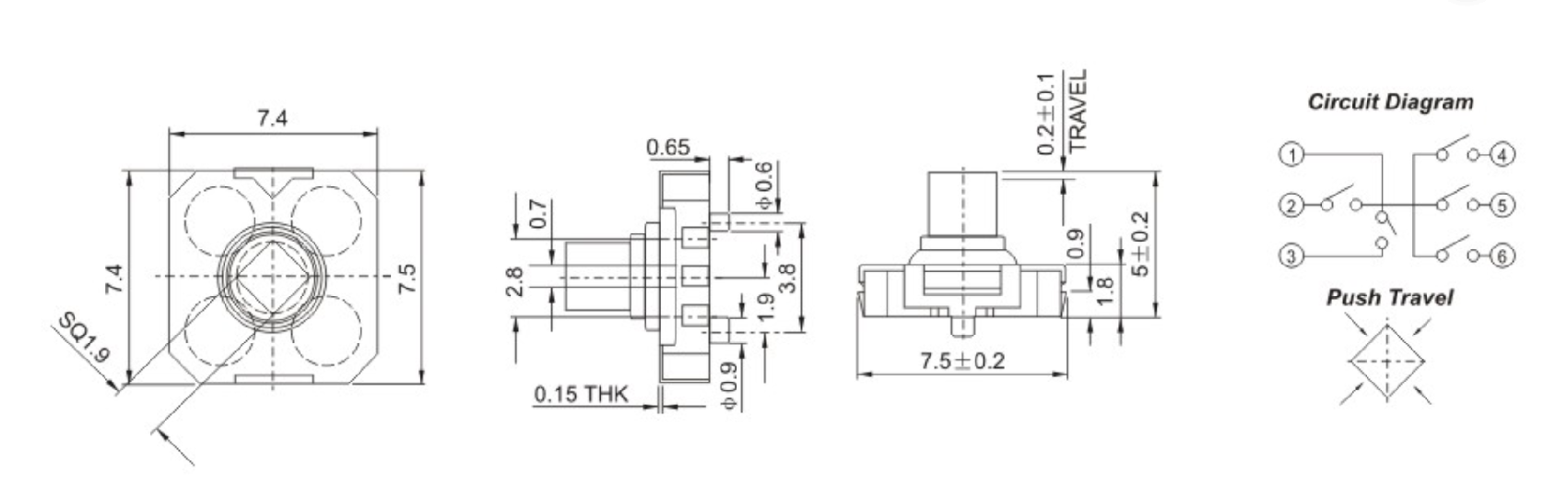

DIMENSIONS

Unit:mm

Model	Dimensions
TM-4175

Unit:mm
