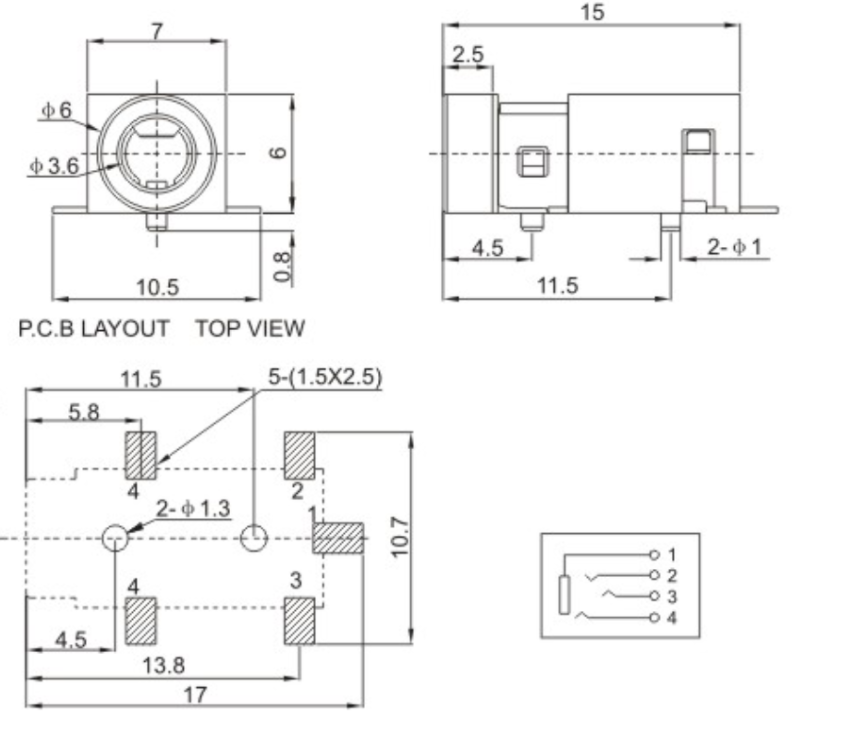

3.5 mm aperture SMT horizontal audio phone jack
PJ-322C
3.5mm孔徑/貼片式耳機(jī)插座
FEATURE
? 15.00mm*7.00mm H=6.00mm
? Horizontal SMT
? Reflow soldering
APPLICATIONS
? Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...
