USB3.1 TYPE-C SOCKET USB 3.0 (Super Speed)
USB 3.0 socket
USB 3.0-0892
USB 3.0 AF反向沉板H4.46 DIP TYPE-Model
FEATURE
? 13.1mm*17.22mm
? Horizontal 90 degree DIP
? Wave soldering
APPLICATIONS
? Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電流/Current Rating | 1A/contact terminal |
|---|
| 額定電壓/Voltage Rating | 30V DC |
|---|
| 接觸電阻/Contact Resistance | 30M? |
|---|
| 尺寸/Dimension | 13.1mm*17.22mm |
|---|
| 電壓/Dielectric Withstabding Voltage | 100V DC |
|---|
| 絕緣電阻/Insulation Resistance | 100M? min |
|---|

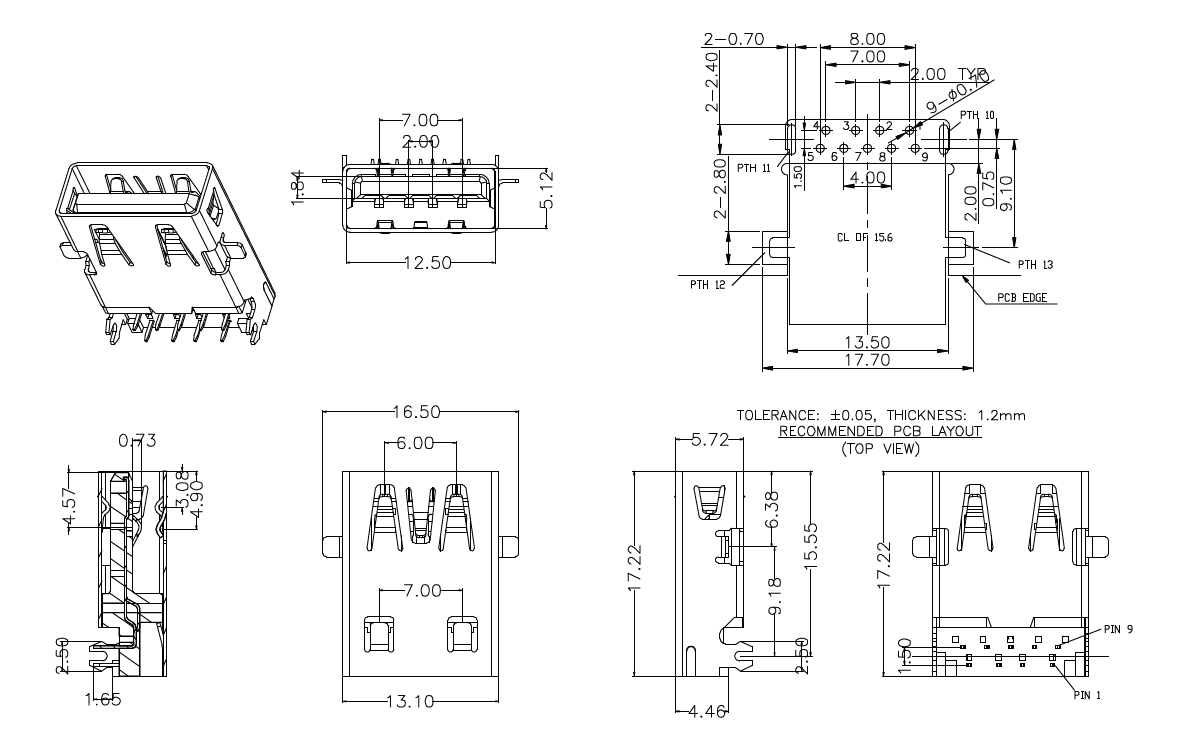

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
USB 3.0-0892 |  |
Unit:mm
Unit:mm
