USB3.1 TYPE-C SOCKET USB 3.0 (Super Speed)

USB 3.0 socket

USB 3.0-3551-A

USB 3.0 A TYPE 雙層母座板上15.6 DIP腳 FEATURE ? 13.1mm*17.0mm ? Horizontal 90 degree DIP ? Wave soldering APPLICATIONS ? Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Current Rating	1A/contact terminal
額定電壓/Voltage Rating	30V DC
接觸電阻/Contact Resistance	30M?
尺寸/Dimension	13.1mm*17.0mm
電壓/Dielectric Withstabding Voltage	100V DC
絕緣電阻/Insulation Resistance	100M? min

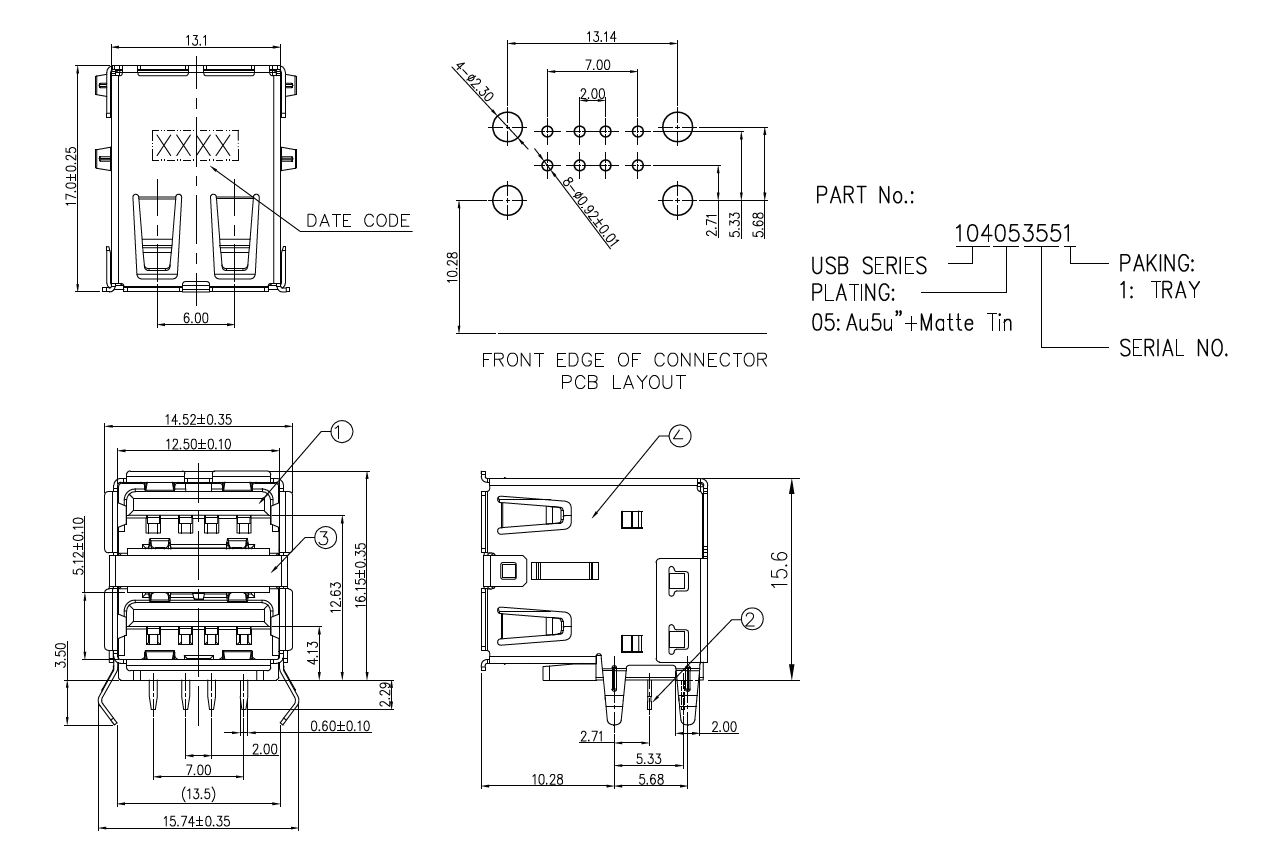

DIMENSIONS

Unit:mm

Model	Dimensions
USB 3.0-3551-A

Unit:mm
