MULTI-FUNCTION SWITCH 多功能開關

Multi-function rotary switch

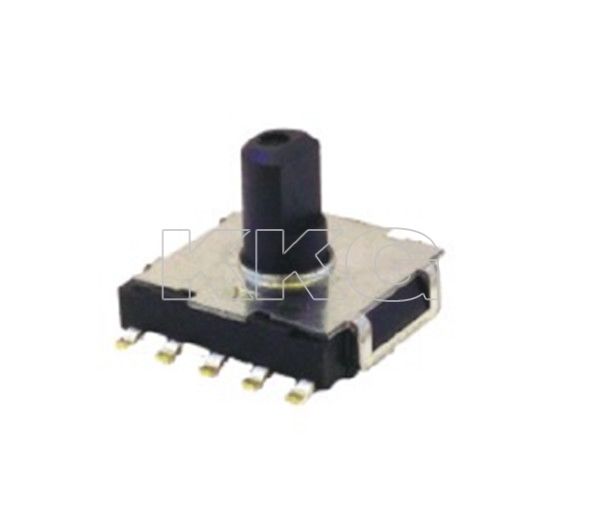

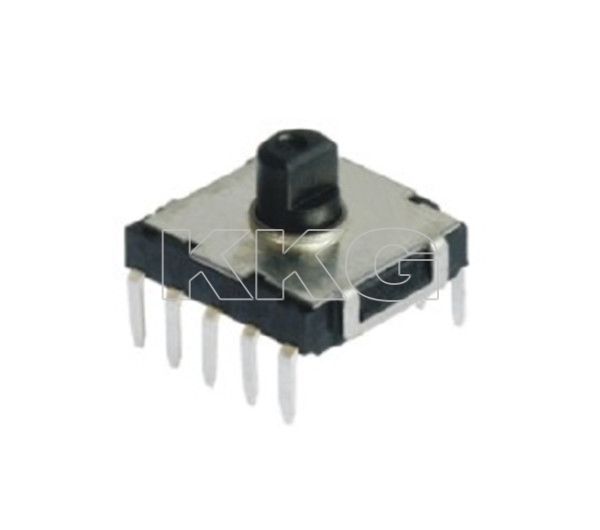

TM-1901 series

9檔旋轉(zhuǎn)開關 FEATURE ? 12.40mm*11.40mm ? 1C-9P ? DIP SMD installation APPLICATIONS ? Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定值/Rating	DC 16V 0.1A
電路&位置/Circuit & Position	1C-9P
接觸電阻/Contact Resistance	100mΩMax
壽命/Life	50000

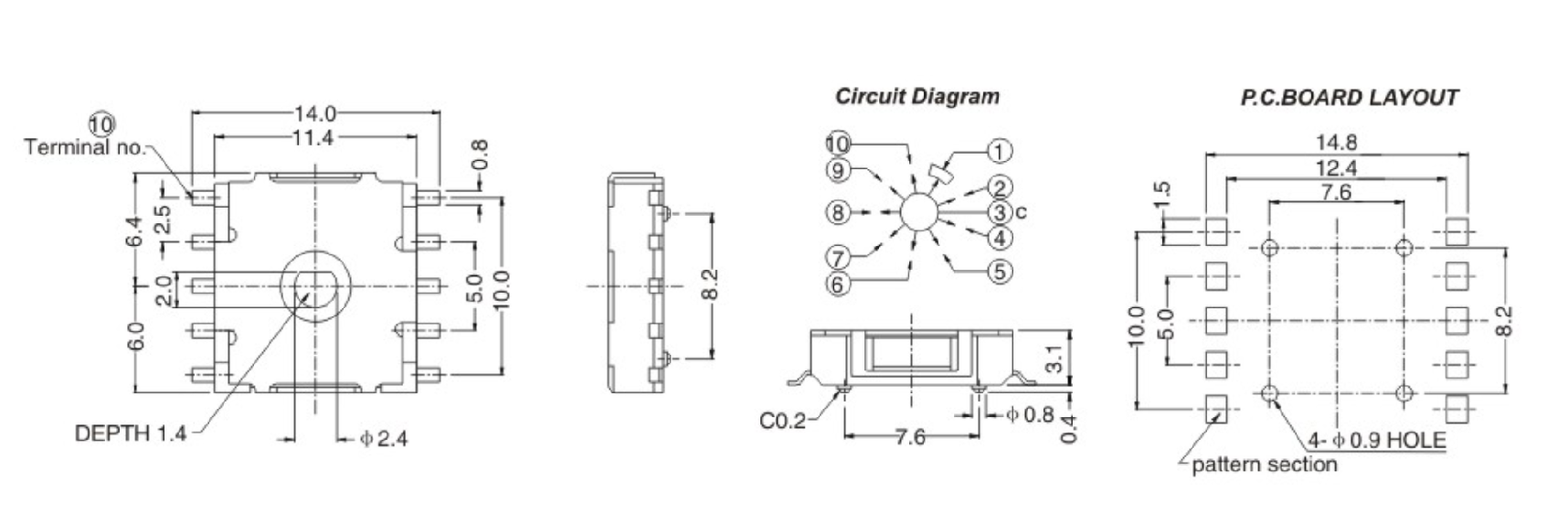

DIMENSIONS

Unit:mm

Model	Dimensions
TM-1901

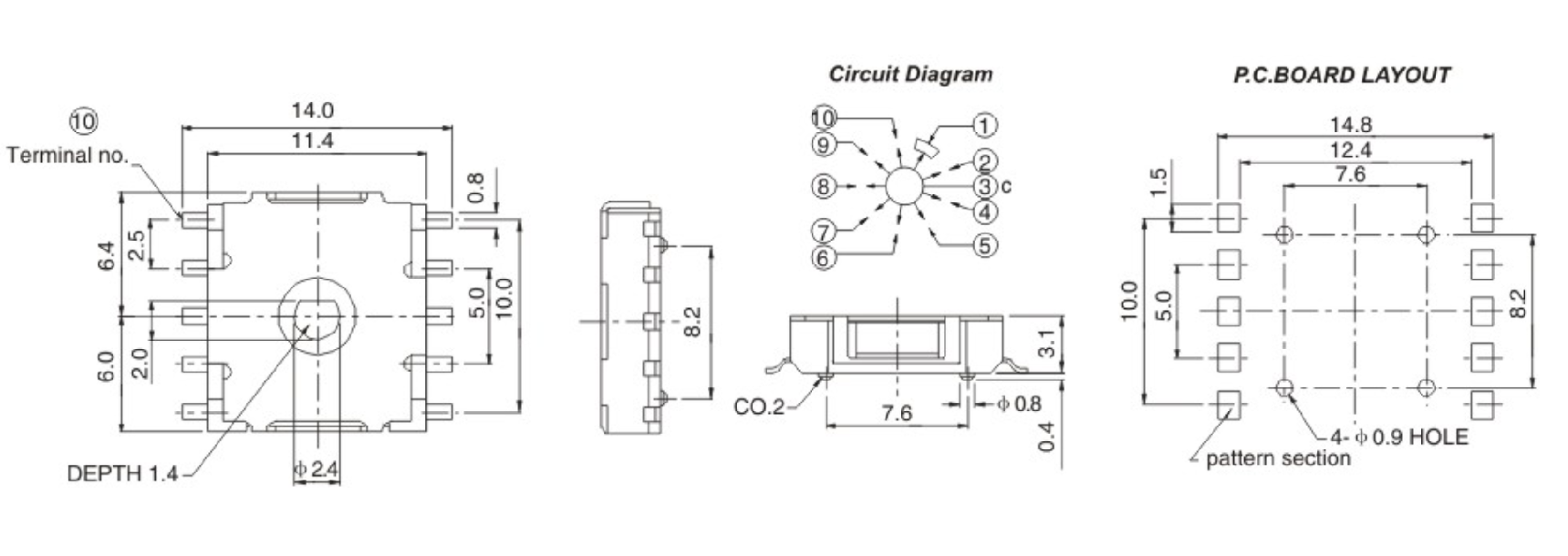

DIMENSIONS

Unit:mm

Model	Dimensions
TM-1901AS

Unit:mm

DIMENSIONS

Unit:mm

Model	Dimensions
TM-1901S
