?3.5耳機插座

3.5 mm aperture SMT horizontal audio phone jack

PJ-3618

3.5mm孔徑/貼片式耳機插座 FEATURE ? 13.90mm*6.80mm ? Horizontal SMT ? Reflow soldering APPLICATIONS ? Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電氣額定值/Rating	0.5A，30V
操作力/Operating Force	3~30N
尺寸/Dimension	13.90mm*6.80mm
電氣壽命/Electrical Life	5,000 Cycles Min
絕緣強度/Dielectric Strength	AC500V
接觸電阻/Contact Resistance	50mΩ Max

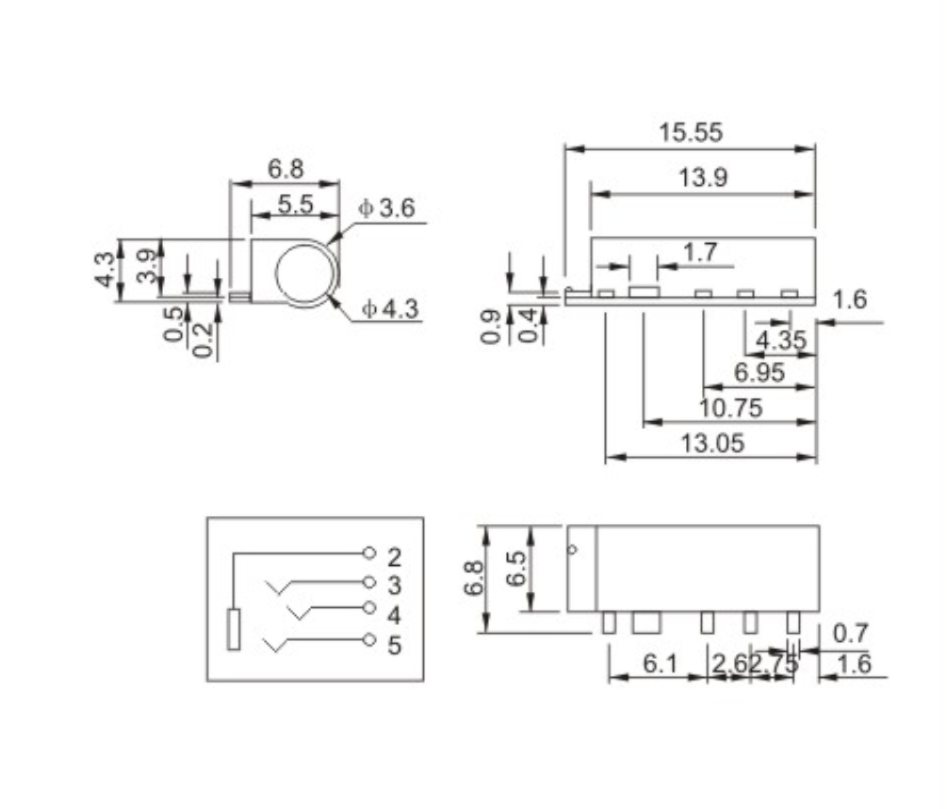

DIMENSIONS

Model	Dimensions
PJ-3618
