MULTI-FUNCTION SWITCH 多功能開關

Multi-function wheel switch

TM-1508

撥輪開關 FEATURE ? 8.90mm*9.50mm ? 3 gears ? SMD installation APPLICATIONS ? Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定值/Rating	DC 12V 500MA MAX
推動行程/Travel Push	0.7MM
兩方向力度/Forcel Lever	0.65±0.3N
中心力度/CENTER	2.5±1N
壽命/Life Cycles	100000 Cycles

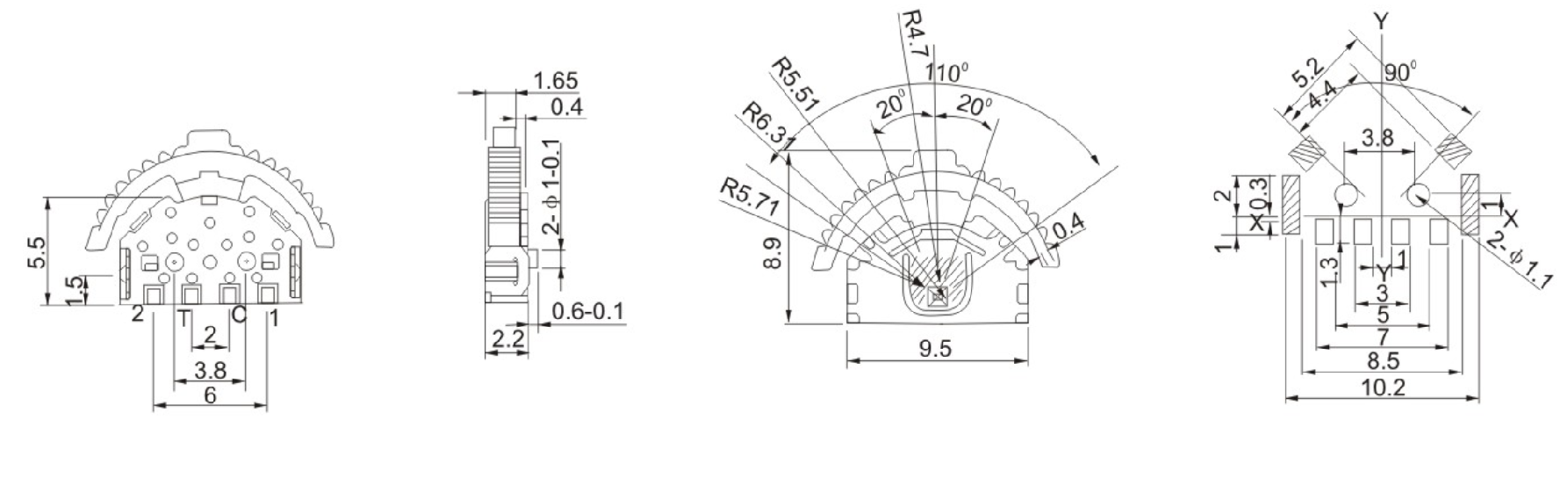

DIMENSIONS

Unit:mm

Model	Dimensions
TM-1508

Unit:mm
