MULTI-FUNCTION SWITCH 多功能開關

Joystick potentiometer

TM-1224 series

操縱桿電位器 FEATURE ? 16.00mm*16.00mm ? Loop operation ? Wave soldering APPLICATIONS ? Digital cameras, automobiles, health care products, robots and industrial machinery, game consoles, drones.

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
全阻值/Total resistance	5KA~100KA
額定功率/Rated power	0.0125W
工作電流/Working current	100MA DC250V
滑桿行程/Travel of the slide bar	60°±6°
操作力距/Operating torque	160±40gf
壽命/life	2000000 Times

DIMENSIONS

Unit:mm

Model	Dimensions

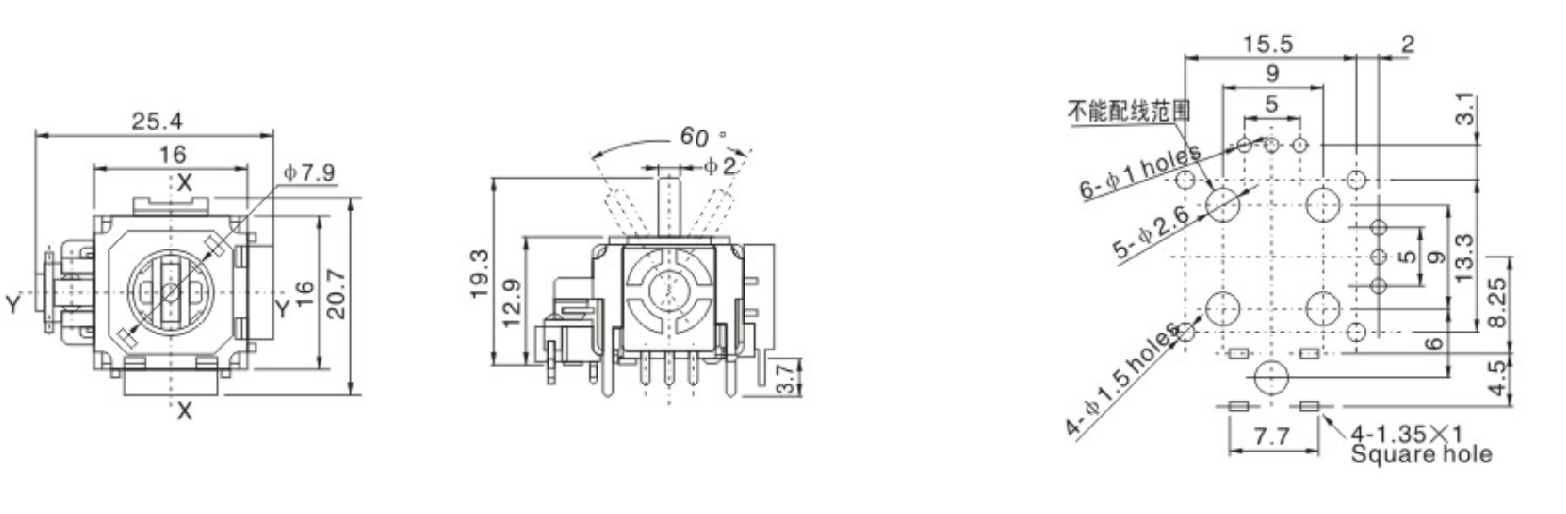

TM-1224

DIMENSIONS

Unit:mm

Model	Dimensions

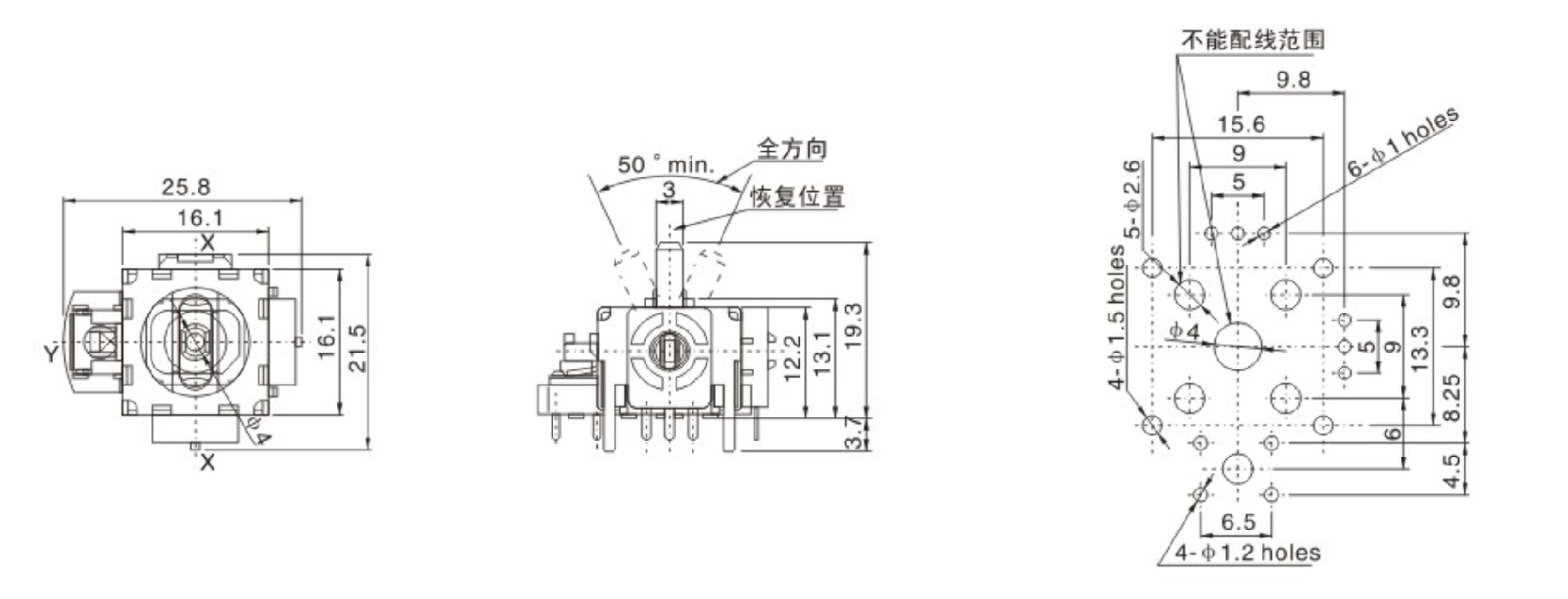

TM-1224A
