MULTI-FUNCTION SWITCH 多功能開關

Joystick potentiometer

TM-2118

操縱桿電位器 FEATURE ? 21.00mm*18.50mm ? Slide on the 2D flat ? Integrated tact switch APPLICATIONS ? Digital cameras, MP3|MP4, automobiles, health care products, robots and industrial machinery, game consoles, drones.

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
全阻值/Total resistance	5KA~100KA
額定功率/Rated power	0.0125W
工作電流/Working current	50MA DC12V
滑柄行程/Slide stroke	0.5+0.5/-0.4mm
操作力距/Operating torque	120±40gf
壽命/life	2000000 Times

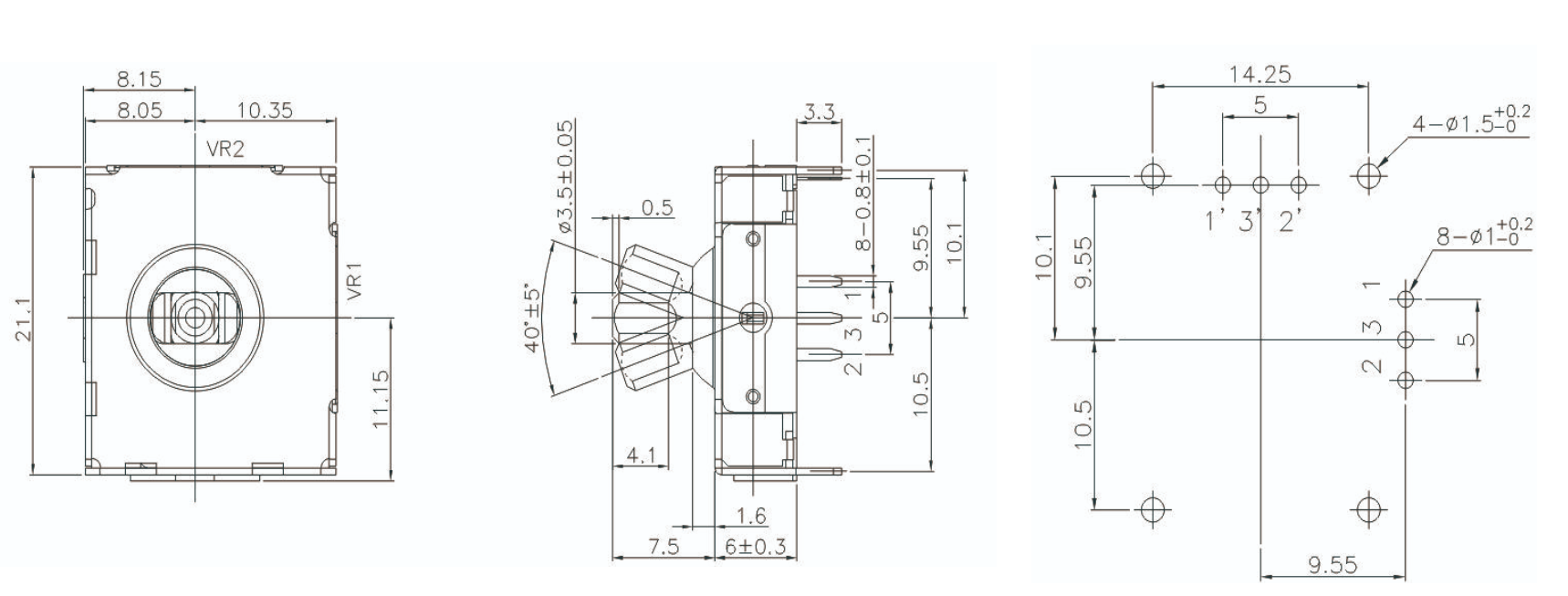

DIMENSIONS

Unit:mm

Model	Dimensions
TM-2118
